COMETIC

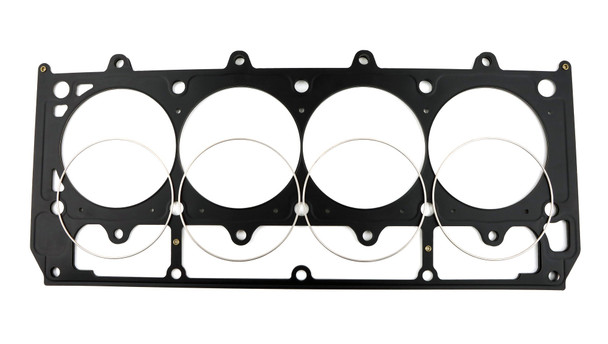

Cometic LSX 4.150 Bore MLS Head Gasket w/SEG Rings, Right Side C15531-051
- PART NUMBER:
- C15531-051
- UPC:
- 191070531621
- MPN:
- C15531-051
- Shipping:
- Free over $98 in U.S. 48
- Type:
- LSX Head Gaskets
- Material:
- Multi-Layer Steel
- Number of Layers:
- 3
- Bore (in.):
- 4.150
- Compressed Thickness (in.):
- .051
- Quantity:
- Sold individually
- Note:
- With SEG Rings, 6 Bolt Kit, Right Side
On Sale
Description
Cometic LSX 4.150 Bore MLS Head Gasket w/SEG Rings, Right Side C15531-051
LS 4.150" Bore. 0.051" Compressed Thickness w/ SEG (Spring Energized Gasket) Rings, 6 Bolt Kit, RHS
Extreme Sealing for High Horsepower Forced Induction Applications
The resilient nature of the seal ensures useful elastic recovery during service, this recovery aids in the seals
ability to accommodate minor distortions in the clamped joint, making it conducive for elevated temperature
and cylinder pressures like that seen in extremely high horsepower, forced induction applications.
Key Design parameters
ability to accommodate minor distortions in the clamped joint, making it conducive for elevated temperature
and cylinder pressures like that seen in extremely high horsepower, forced induction applications.
Key Design parameters
• Bores Available: 4.150”, 4.200”
• Jacket Construction: Iconel
• Spring Construction: Inconel
• Electro-Plating: Silver
• Approximate Seating load: 1100 lbf/linear inch
• Ring Finish: 16 micron
• Ring Thickness: .063” (pre-plating)
• No counter bores or ring grooves need
• Used exclusively with Cometic MLS .051” carrier for ring location and fluid sealing
• Low bore distortion
• Low risk for cylinder head wear
• Extended service life for components
