Aeromotive

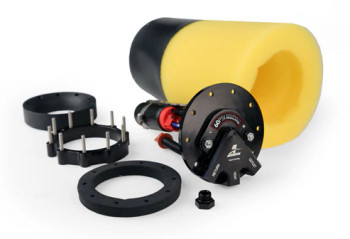

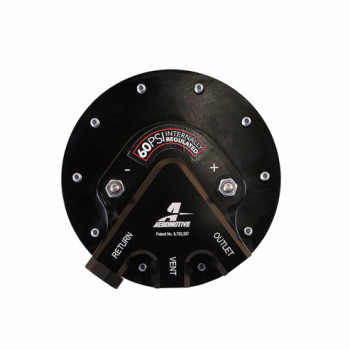

Aeromotive 200 LPH In-Tank Fuel Pump 11137

PART NUMBER:
11137
MPN:
11137
Availability:
Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:
FREE OVER $98 IN US 48
Type:
In-Tank Fuel Pumps
Flow Rate:
215 lph @ 40 psi
Inlet Fitting:
ORB‑06
Outlet Fitting:
ORB‑06
Race Fuel Compatible:
Yes
e85 Compatible:
No
  • Aeromotive 200 LPH In-Tank Fuel Pump 11137
  • Aeromotive 200 LPH In-Tank Fuel Pump 11137
  • Aeromotive 200 LPH In-Tank Fuel Pump 11137
$136.95

Description

Aeromotive 200 LPH In-Tank Fuel Pump 11137

P/N 11137: 200 LPH Fuel Pump
Fuel Injected Engines:
Up to 600 HP - Naturally Aspirated
Up to 450 HP - Forced Induction
Carbureted Engines:
Up to 750 HP - Naturally Aspirated
Up to 600 HP - Forced Induction

  • Replacement fuel pump, 200 lph.
  • Phantom 200 part number 18689,
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



Specifications

Series Phantom
Maximum Flow Rating 215@40PSI
Maximum Pressure 80
Fuel Type Gas
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Maximum Current Draw 8.3
Voltage 12
Negative Ground Yes
Wiring Harness Included No
Terminal Gender Male
Terminal Quantity 2
Terminal Type Tab
Strainer Included No
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance
