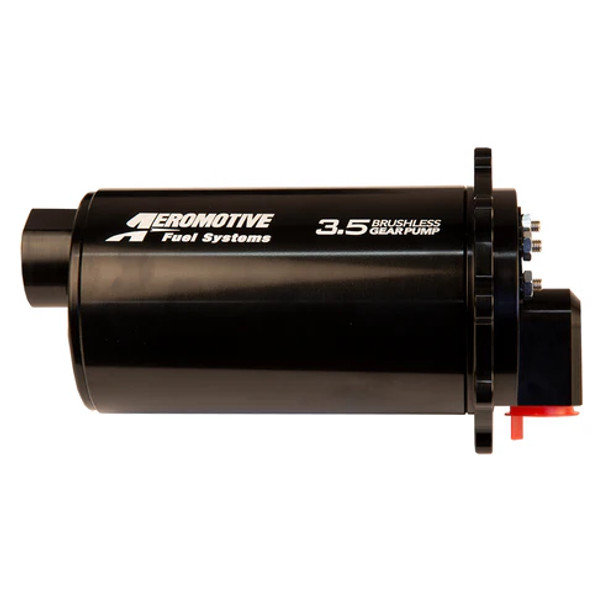

Aeromotive 3.5 GPM In-Tank Fuel Pump Module Brushless 90 Degree Outlet w/ Speed Controller 18067

P/N 18067 Fuel Pump Module, True Variable Speed, 90-Deg Outlet, Brushless Spur 3.5

This configuration features a universal filter pickup, for an overall height adjustment from 10-16in.

The Pro-Series performance you expect and more:

• Fuel-injected engines: GAS
  up to 2400 FWHP – naturally-aspirated
  up to 1800 FWHP – forced air induction

• Carbureted engines: GAS
  Up to 2600 FWHP – naturally-aspirated
  Up to 2000 FWHP – forced air induction

• Fuel-injected engines: E85
  up to 1680 FWHP – naturally-aspirated
  up to 1260 FWHP – forced air induction

• Carbureted engines: E85
  Up to 1820 FWHP – naturally-aspirated
  Up to 1400 FWHP – forced air induction

• Fuel-injected engines: METHANOL
  up to 840 FWHP – naturally-aspirated
  up to 630 FWHP – forced air induction

• Carbureted engines: METHANOL
  Up to 910 FWHP – naturally-aspirated
  Up to 700 FWHP – forced air induction

• Lighter than the traditional Pro-Series pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
• ORB-10 outlet port.
• Requires straight 12-VDC to 16-VDC power supply.
• Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
• Not compatible with pulse-modulated systems or fuel pump speed controllers.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications

EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
