Aeromotive

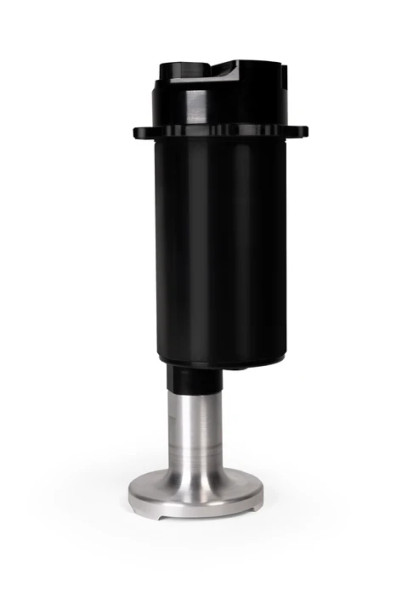

Aeromotive 5.0 GPM In-Tank Fuel Pump Module Brushless 18026

PART NUMBER:
18026
MPN:
18026
Availability:
Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:
FREE OVER $98 IN US 48
Type:
In-Tank Fuel Pumps
Inlet Fitting:
ORB‑12 Female
Outlet Fitting:
ORB‑10 Female
Race Fuel Compatible:
Yes
e85 Compatible:
Yes
  • Aeromotive 5.0 GPM In-Tank Fuel Pump Module Brushless 18026
  • Aeromotive 5.0 GPM In-Tank Fuel Pump Brushless 18026
  • Aeromotive 5.0 GPM In-Tank Fuel Pump Module Brushless 18026
$1,923.45

Description

Aeromotive 5.0 GPM In-Tank Fuel Pump Module Brushless 18026

P/N 18026 5.0 Brushless Stealth Gear Pump
Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10" deep custom fuel cell.

Supports

  • Fuel injected engines: GAS
    up to 3400 FWHP - naturally aspirated
    up to 2600 FWHP - forced air induction
  • Carbureted engines: GAS
    Up to 3600 FWHP - naturally aspirated
    Up to 2700 FWHP - forced air induction
  • Fuel injected engines: E85
    up to 2380 FWHP – naturally aspirated
    up to 1820 FWHP – forced air induction
  • Carbureted engines: E85
    Up to 2520 FWHP – naturally aspirated
    Up to 1890 FWHP – forced air induction
  • Fuel injected engines: METHANOL
    up to 1,190 FWHP – naturally aspirated
    up to 910 FWHP – forced air induction
  • Carbureted engines: METHANOL
    Up to 1,260 FWHP – naturally aspirated
    Up to 945 FWHP – forced air induction
  • Lighter than the traditional Pro-Series pumps.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • ORB-10 outlet port.
  • Requires straight 12-VDC to 16-VDC power supply.
    • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse modulated systems or fuel pump speed controllers

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

Specifications

Series 5.0 GPM
Maximum Flow Rating 5.0 GPM
Maximum Pressure 150
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Spur Gear
Motor Style Brushless
Integrated Controller No
Pulse Width Modulation Compatible No
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Female Thread
Outlet Outside Diameter ORB-10
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included No
Terminal Quantity 0
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included Yes
Seal And Lock Ring Included Yes
Gasket Or Seal Included Yes
Grade Type Performance
Marine Approved No
