Aeromotive

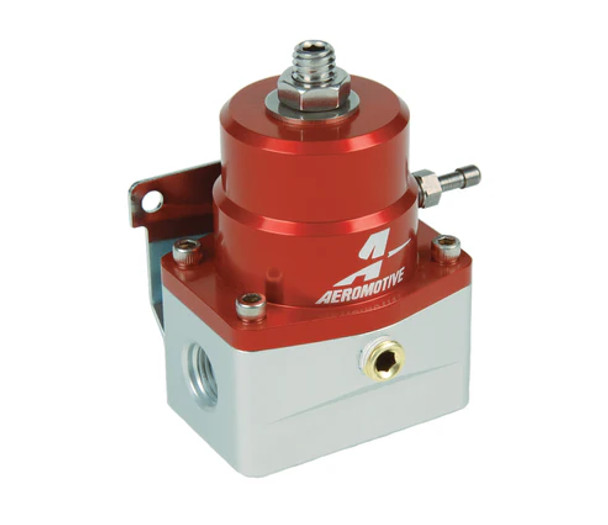

Aeromotive A1000-6 EFI Fuel Pressure Regulator 13109
- PART NUMBER:
- 13109
- MPN:
- 13109
- Availability:
- Ships from Manufacturer
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- Fuel Pressure Regulators
- Material:
- Aluminum
- Finish:
- Red/Clear Anodized
- Style:
- Return
- Vacuum/Boost Comensation Ratio:
- 1:1
- Inlet/Outlet Qty:
- 1/1
- Gauge Port:
- Yes
- Inlet Size:
- -6 AN
- Outlet Size:
- -6 AN
- Return Qty:
- 1
- Return Size:
- -6 AN
- Pressure Range (psi):
- 40-75
Description
Aeromotive A1000-6 EFI Fuel Pressure Regulator 13109
Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive's high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world!
- Base pressure adjustable from 40-75 PSI.
- Gasoline and alcohol compatible.
- Fuel pressure rises on a 1:1 ratio with boost.
- 1/8" NPT gauge port.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.
Specifications
| Pressure Range | 40-75 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 40 PSI |
| Maximum Pressure | 75 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 2 |
| Inlet Port Diameter | ORB-06 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Red/Silver |
| Grade Type | Performance |
