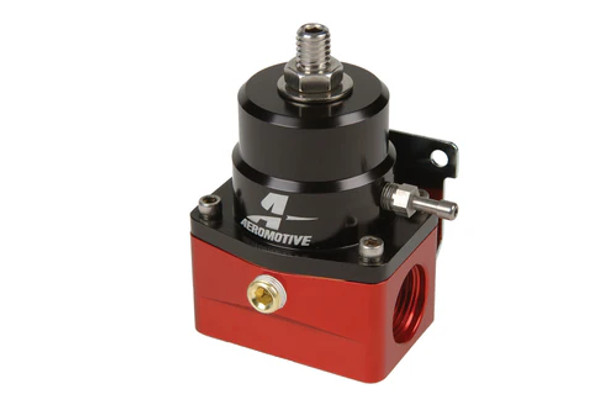

Aeromotive A1000 EFI Fuel Pressure Regulator Return Style 13101

PART NUMBER:: 13101
UPC:
MPN:: 13101
Availability:: Ships from Manufacturer
Shipping:: FREE OVER $98 IN US 48
Type:: Fuel Pressure Regulators
Material:: Aluminum
Finish:: Red/Black Anodized
Style:: Return
Location:: Inline
Vacuum/Boost Comensation Ratio:: 1:1
Inlet/Outlet Qty:: 2/1
Gauge Port:: Yes
Inlet Size:: ORB-10
Outlet Size:: ORB-10
Return Qty:: 1
Return Size:: ORB-06
Pressure Range (psi):: 40-75

$221.45

Current Stock:

Quantity:

Description

Description

Aeromotive A1000 EFI Fuel Pressure Regulator Return Style 13101

Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive's high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world!

Base pressure adjustable from 40-75 PSI.
Gasoline, ethanol, alcohol and diesel compatible.
Fuel pressure rises on a 1:1 ratio with boost.
1/8' NPT gauge port.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 13101 provides (2) ORB-10 inlet ports and (1) ORB-06 return port.

Specifications

Pressure Range	40-75 PSI
Adjustable	Yes
Minimum Pressure	40 PSI
Maximum Pressure	75 PSI
Mounting Bracket Included	Yes
Port Quantity	2
Inlet Port Diameter	ORB-10
Inlet Gender	Female
Gauge Included	No
Color	Black/Red
Grade Type	Performance
