Aeromotive
Aeromotive A1000 In-Tank Fuel Pump Module w/ Pickup 18003
- PART NUMBER:
- 18003
- MPN:
- 18003
- Availability:
- Ships from Manufacturer
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- In-Tank Fuel Pumps
- Inlet Fitting:
- 0.75" Pickup Tube
- Outlet Fitting:
- ORB‑10 Female
- Race Fuel Compatible:
- Yes
- e85 Compatible:
- No
Description

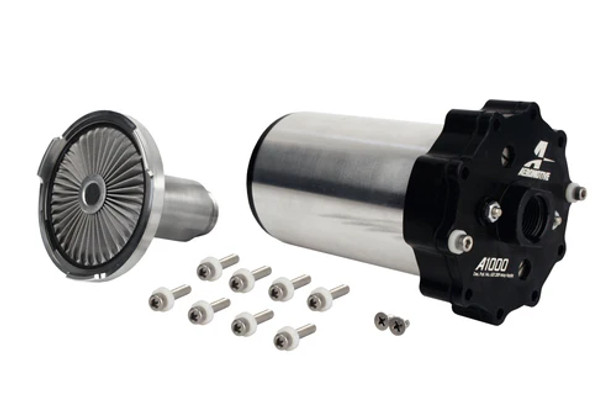

Aeromotive A1000 In-Tank Fuel Pump Module w/ Pickup 18003
Replacement A1000 Fuel pump module and pickup for Aeromotive fuel cells
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Fuel Injected Engines:
up to 1300 HP - naturally aspirated
up to 1000 HP - forced air induction
Carbureted Engines:
up to 1500 HP - naturally aspirated
up to 1200 HP - forced air induction
Specifications
| Series | A1000 |
|---|---|
| Maximum Flow Rating | 1000 |
| Fuel Type | Gas |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Rotary Vane |
| Motor Style | Brushed |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | Yes |
| Fuel Delivery Type | Fuel Injection |
| Inlet Outside Diameter | 0.75 |
| Outlet Type | ORB-10 |
| Outlet Outside Diameter | ORB-10 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wire Quantity | 0 |
| Wiring Harness Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Seal And Lock Ring Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
