Aeromotive A2000 2-Port Carbureted Fuel Pressure Regulator 13212

PART NUMBER:: 13212
UPC:
MPN:: 13212
Availability:: Ships from Manufacturer
Shipping:: FREE OVER $98 IN US 48
Type:: Fuel Pressure Regulators
Material:: Aluminum
Finish:: Black Anodized
Style:: Return
Vacuum/Boost Comensation Ratio:: 1:1
Inlet/Outlet Qty:: 1/1
Gauge Port:: Yes
Inlet Size:: ORB-10
Outlet Size:: ORB-10
Return Qty:: 1
Return Size:: ORB-10
Pressure Range (psi):: 2-20

$284.95

Current Stock:

Quantity:

Description

Description

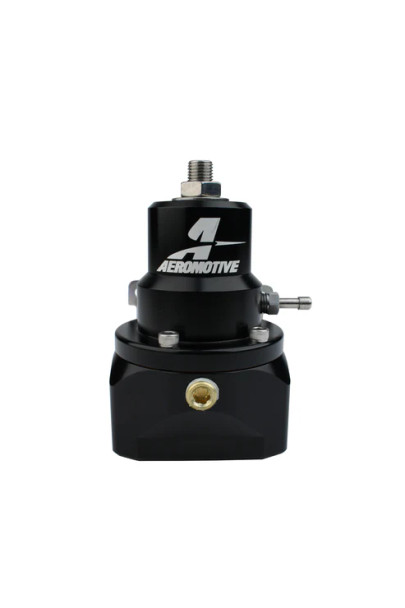

Aeromotive A2000 2-Port Carbureted Fuel Pressure Regulator 13212

P/N 13212: A2000, 2-Port Return Style Regulator
Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 return style Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.

Adjustable from 2-20 PSI.
Return style design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)
Fuel pressure rises on a 1:1 ratio when referencing boost.
ORB-10 inlet and return ports.
P/N 13212 provides (1) ORB-10 outlet port.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 13212 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17248 or 17250.Note: High pressure, boost reference applications require high volume, high pressure fuel pumps. EFI capable, electric or mechanical pumps like the Aeromotive Pro-Series (P/N 11102), Eliminator (P/N 11104), or Belt Drive Fuel Pump (P/N 11105) are strongly recommended.

Specifications

Pressure Range	2-20 PSI
Adjustable	Yes
Minimum Pressure	2 PSI
Maximum Pressure	20 PSI
Mounting Bracket Included	Yes
Port Quantity	2
Inlet Port Diameter	ORB-10
Inlet Gender	Female
Gauge Included	No
Color	Black
Grade Type	Performance
