Aeromotive

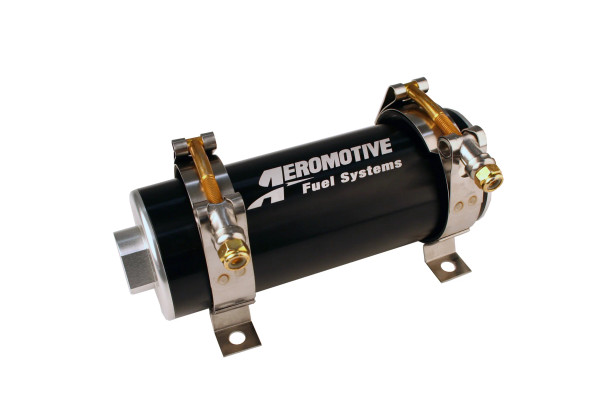

Aeromotive A750 In-Line Fuel Pump
- Availability:
- Ships from Manufacturer ( 2-3 Week Lead Time )
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- In-Tank Fuel Pumps
- Inlet Fitting:
- ORB‑8
- Outlet Fitting:
- ORB‑6
- Race Fuel Compatible:
- Yes
- e85 Compatible:
- Yes
Description
Aeromotive A750 In-Line Fuel Pump
A750 Fuel Pum
Compact, quiet and durable, these billet, in-line pumps are ideal for low to medium HP applications. Perfect for street rods and muscle cars, fuel-injected or carbureted. Available in three finish options.
Fuel Injected Engines:
up to 800 HP - naturally-aspirated
up to 600 HP - forced air induction
Carbureted Engines:
up to 1,000 HP - naturally-aspirated
up to 800 HP - forced air induction
- ORB-8 inlet ports and ORB-6 outlet ports
- Compact size facilitates easy mounting
- For EFI use regulator P/N 13138, 13109 or P/N 13303.
- For Carbureted use regulator P/N 13204 or P/N 13304.
- Fully submersible for custom, in-tank placement
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
|---|---|---|---|---|
| Carbureted | Yes - Forced Induction | Gas | 100 | 800 |
| Carbureted | No - Naturally Aspirated | Gas | 100 | 1000 |
| Fuel Injected | Yes - Forced Induction | Gas | 100 | 600 |
| Fuel Injected | No - Naturally Aspirated | Gas | 100 | 800 |
Compact, quiet and durable, these billet, in-line pumps are ideal for low to medium HP applications. Perfect for street rods and muscle cars, fuel injected or carbureted. Fuel Injected Engines: up to 800 HP - naturally aspirated up to 600 HP - forced air induction Carbureted Engines: up to 1,000 HP - naturally aspirated up to 800 HP - forced air induction
Specifications
| #11103 - Black | #11106 - Red | |
|---|---|---|
| Series | A750 | A750 |
| Maximum Flow Rating | 750 | 750 |
| Maximum Pressure | 100 | 90 |
| Fuel Type | Gas/E85 | Gas/E85 |
| Universal Or Specific Fit | Universal | Universal |
| Internal Or External | External Or Internal | External Or Internal |
| Pump Design | Rotary Vane | Rotary Vane |
| Integrated Controller | No | No |
| Pulse Width Modulation Compatible | Yes | Yes |
| Fuel Delivery Type | Carburation & Fuel Injection | Carburation & Fuel Injection |
| Inlet Type | Female Thread | Female Thread |
| Inlet Outside Diameter | ORB-10 | ORB-10 |
| Outlet Type | Female Thread | Female Thread |
| Outlet Outside Diameter | ORB-6 | ORB-6 |
| Maximum Current Draw | 14 @ 45 psi | 10 @ 45 psi |
| Voltage | 12 | 12 |
| Negative Ground | Yes | Yes |
| Wire Quantity | 0 | 0 |
| Wiring Harness Included | No | No |
| Terminal Gender | Male | Male |
| Terminal Quantity | 2 | 2 |
| Terminal Type | Threaded Stud | Threaded Stud |
| Strainer Included | No | No |
| Fuel Sending Unit Included | No | No |
| Regulator Included | No | No |
| Mounting Bracket Included | Yes | Yes |
| Mounting Hardware Included | No | No |
| Seal And Lock Ring Included | No | No |
| Gasket Or Seal Included | No | No |
| Grade Type | Performance | Performance |
