Aeromotive

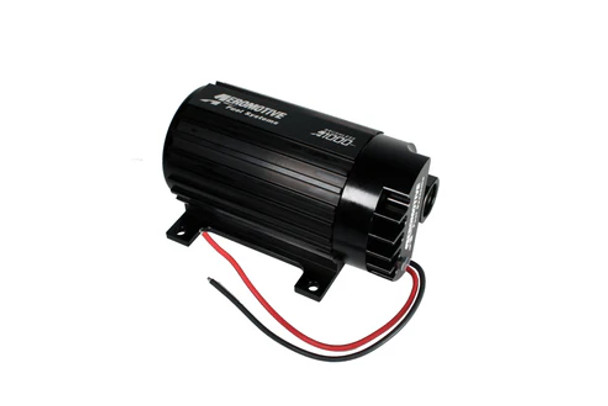

Aeromotive Brushless In-Line Fuel Pump 11183

PART NUMBER:
11183
MPN:
11183
Availability:
Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:
FREE OVER $98 IN US 48
Type:
In-Tank Fuel Pumps
Inlet Fitting:
ORB-10
Outlet Fitting:
ORB-10
Race Fuel Compatible:
Yes
e85 Compatible:
Yes
  • Aeromotive Brushless In-Line Fuel Pump 11183
  • Aeromotive Brushless In-Line Fuel Pump 11183
  • Aeromotive Brushless In-Line Fuel Pump 11183
$810.45

Description

Aeromotive Brushless In-Line Fuel Pump 11183

P/N 11183 A1000 Brushless Signature Fuel Pump

  • Lighter than the traditional A1000 pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Quieter than the traditional A1000 pump.
  • ORB-10 inlet and outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts

Mounting: External
CARB or EFIPower AdderFuelMin HPMax HP
Carbureted Yes - Forced Induction E85 500 840
Carbureted Yes - Forced Induction Gas 700 1200
Carbureted No - Naturally Aspirated E85 600 1050
Carbureted No - Naturally Aspirated Gas 800 1500
Fuel Injected Yes - Forced Induction E85 400 700
Fuel Injected Yes - Forced Induction Gas 600 1000
Fuel Injected No - Naturally Aspirated E85 500 910
Fuel Injected No - Naturally Aspirated Gas 720 1300

Specifications

Series A1000
Maximum Flow Rating 1000
Maximum Pressure 90
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External External Or Internal
Pump Design Rotary Vane
Motor Style Brushless
Integrated Controller No
Pulse Width Modulation Compatible No
Fuel Delivery Type Carburation & Fuel Injection
Inlet Type Female Thread
Inlet Outside Diameter ORB-10
Outlet Type Female Thread
Outlet Outside Diameter ORB-10
Maximum Current Draw 12 @ 40 psi
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included No
Terminal Quantity 0
Terminal Type Lead Wire
Strainer Included No
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance
