Aeromotive

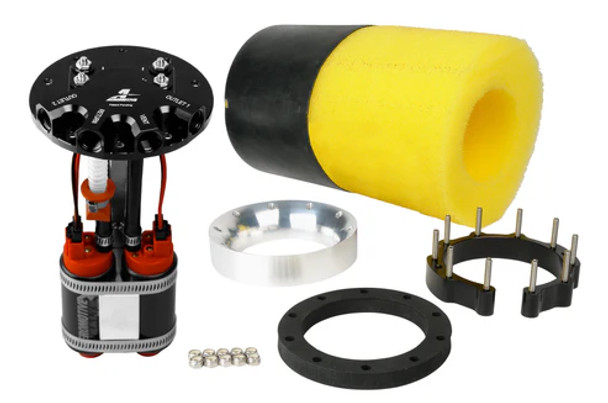

Aeromotive Dual 340 LPH In-Tank Fuel Pump Kit 18309
- PART NUMBER:
- 18309
- MPN:
- 18309
- Availability:
- Ships from Manufacturer
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- In-Tank Fuel Pumps
- Flow Rate:
- Dual 340lph @ 40psi
- Inlet Fitting:
- ORB-06
- Outlet Fitting:
- -6 AN Female
- Race Fuel Compatible:
- Yes
- e85 Compatible:
- No
Description
Aeromotive Dual 340 LPH In-Tank Fuel Pump Kit 18309
GM specific applications* The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.
Specifications:
| Series | Phantom |
|---|---|
| Maximum Flow Rating | 340 x 2 |
| Maximum Pressure | 40 |
| Fuel Type | Gas |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Turbine Impeller |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | No |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Outlet Type | Female Thread |
| Outlet Outside Diameter | AN-06 X2 |
| Maximum Current Draw | 13 / each |
| Voltage | 12 |
| Negative Ground | Yes |
| Wiring Harness Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Threaded Stud |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Seal And Lock Ring Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
Pump Applications:
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
|---|---|---|---|---|
| Carbureted | Yes - Forced Induction | E85 | 600 | 1190 |
| Carbureted | Yes - Forced Induction | Gas | 850 | 1700 |
| Carbureted | No - Naturally Aspirated | E85 | 800 | 1400 |
| Carbureted | No - Naturally Aspirated | Gas | 1200 | 2000 |
| Fuel Injected | Yes - Forced Induction | E85 | 450 | 980 |
| Fuel Injected | Yes - Forced Induction | Gas | 700 | 1400 |
| Fuel Injected | No - Naturally Aspirated | E85 | 650 | 1190 |
| Fuel Injected | No - Naturally Aspirated | Gas | 1000 | 1700 |
