Aeromotive

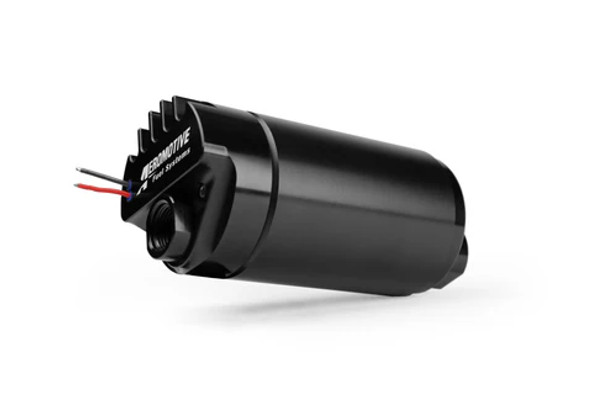

Aeromotive Eliminator Brushless In-Line Fuel Pump 11180

PART NUMBER:
11180
MPN:
11180
Availability:
Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:
Free Over $98 in US 48
Type:
In-Tank Fuel Pumps
Inlet Fitting:
ORB-12
Outlet Fitting:
ORB-10
Race Fuel Compatible:
Yes
e85 Compatible:
Yes
  • Aeromotive Eliminator Brushless In-Line Fuel Pump 11180
  • Aeromotive Eliminator Brushless In-Line Fuel Pump 11180
  • Aeromotive Eliminator Brushless In-Line Fuel Pump 11180
$1,104.45

Description

Aeromotive Eliminator Brushless In-Line Fuel Pump 11180

P/N 11180 Eliminator Brushless External Fuel Pump

  • Lighter than the traditional Eliminator pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Quieter than the traditional Eliminator pump.
  • ORB-12 inlet and ORB-10 outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse modulated systems or fuel pump speed controllers

EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts

Pump Applications

Mounting: External
CARB or EFIPower AdderFuelMin HPMax HP
Carbureted Yes - Forced Induction E85 714 1190
Carbureted Yes - Forced Induction Gas 1020 1700
Carbureted No - Naturally Aspirated E85 892 1610
Carbureted No - Naturally Aspirated Gas 1275 2300
Fuel Injected Yes - Forced Induction E85 595 1190
Fuel Injected Yes - Forced Induction Gas 850 1400
Fuel Injected No - Naturally Aspirated E85 773 1330
Fuel Injected No - Naturally Aspirated Gas 1105 1900

Specifications

Series Eliminator
Maximum Flow Rating 1250
Maximum Pressure 90
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External External Or Internal
Pump Design Rotary Vane
Motor Style Brushless
Integrated Controller No
Pulse Width Modulation Compatible No
Fuel Delivery Type Carburation & Fuel Injection
Inlet Type Female Thread
Inlet Outside Diameter ORB-12
Outlet Type Female Thread
Outlet Outside Diameter ORB-10
Maximum Current Draw 12 @ 40 psi
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included No
Terminal Quantity 0
Terminal Type Lead Wire
Strainer Included No
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance
