Aeromotive

Aeromotive Eliminator In-Tank Fuel Pump Universal Height 18669

PART NUMBER:
18669
MPN:
18669
Availability:
Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:
FREE OVER $98 IN US 48
Type:
In-Tank Fuel Pumps
Inlet Fitting:
0.75" Pickup Tube
Outlet Fitting:
ORB‑10 Female
Race Fuel Compatible:
Yes
e85 Compatible:
Yes
  • Aeromotive Eliminator In-Tank Fuel Pump Universal Height 18669
  • Aeromotive Eliminator In-Tank Fuel Pump Universal Height 18669
$1,030.95

Description

Aeromotive Eliminator In-Tank Fuel Pump Universal Height 18669

Since releasing our Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, we've developed our new Universal Stealth Pump Assemblies. These revolutionary designs incorporate the same advantages all our Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell.
Designed for the custom tank builder or fabricator, the universal assembly uses O-Ring clamps to positively seal the provided ¾'' tube to the both the filter pickup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance.
Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump; increasing performance and drivability while extending the life span of the pump. Proper baffling and clearance will be required, but installation could not be simpler with this universal design. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

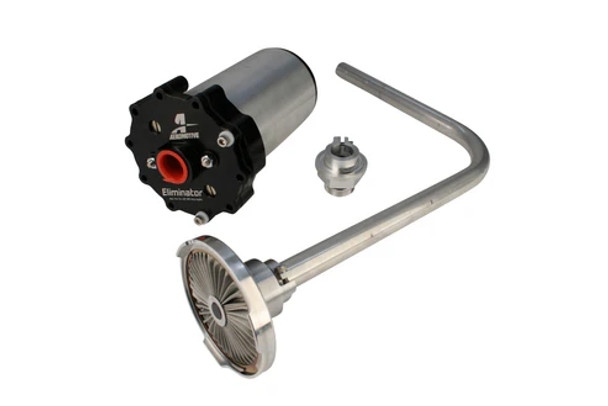

P/N 18669 features:
Aeromotive Eliminator Fuel Pump.
100 Micron stainless steel Fuel Filter / Pickup
20" long 3/4" aluminum tube w/ 90 degree bend
Gaskets, mounting ring, bolts and washers for a positive seal mounting

Pump Applications

CARB or EFIPower AdderFuelMin HPMax HP
Carbureted Yes - Forced Induction E85 714 1190
Carbureted Yes - Forced Induction Gas 1020 1700
Carbureted No - Naturally Aspirated E85 892 1610
Carbureted No - Naturally Aspirated Gas 1275 2300
Fuel Injected Yes - Forced Induction E85 595 1190
Fuel Injected Yes - Forced Induction Gas 850 1400
Fuel Injected No - Naturally Aspirated E85 773 1330
Fuel Injected No - Naturally Aspirated Gas 1105 1900

Specifications

Series Eliminator
Maximum Flow Rating 1250
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Rotary Vane
Motor Style Brushed
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Inlet Outside Diameter 0.75
Outlet Type Female Thread
Outlet Outside Diameter ORB-10
Voltage 12
Negative Ground Yes
Wire Quantity 0
Wiring Harness Included No
Terminal Gender Male
Terminal Quantity 2
Terminal Type Threaded Stud
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included No
Seal And Lock Ring Included Yes
Gasket Or Seal Included Yes
Grade Type Performance
Marine Approved No
