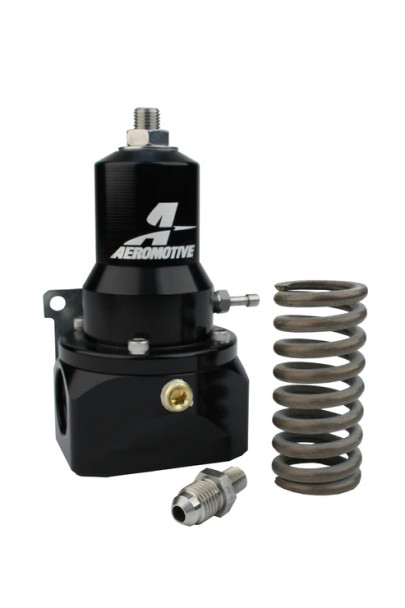

Aeromotive Extreme Flow 2-Port EFI Fuel Pressure Regulator 13134
- PART NUMBER:
- 13134-
- MPN:
- 13134
- Availability:
- Ships from Manufacturer
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- Fuel Pressure Regulators
- Material:
- Aluminum
- Finish:
- Black Anodized
- Style:
- Return
- Vacuum/Boost Comensation Ratio:
- 1:1
- Inlet/Outlet Qty:
- 1/1
- Gauge Port:
- Yes
- Inlet Size:
- ORB‑08
- Outlet Size:
- ORB‑08
- Return Qty:
- 1
- Return Size:
- ORB‑08
- Pressure Range (psi):
- 30-120
Description
Aeromotive Extreme Flow 2-Port EFI Fuel Pressure Regulator 13134
P/N 13134: Extreme Flow EFI Regulator
30-75 PSI and 75-125 PSI Base Pressure Range
- Extreme Flow Design ideal with Eliminator, Pro-Pump, Dual A1000 and Brushless 3.5 and 5.0 Gear Pump fuel systems.
- Suitable for Mechanical pumps up to 6.0 GPM.
- Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port.
- High Flow 0.313" Valve/Seat, optimized for larger electric fuel pumps in the 2.5-6.0 GPM flow range.
- Dual Springs expand pressure range while maintaining a low profile and reduced weight.
- Standard spring (installed) supports 30-75 PSI base fuel pressure.
- High Pressure spring (included) supports 75-120 PSI base fuel pressure.
- Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
- This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
- Vacuum and boost reference on a 1:1 ratio.
- Compatible with gasoline, ethanol and methanol.
Extreme Flow EFI Regulator Designed for use with Eliminator, Pro-Pump and Dual A1000 fuel systems. Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port. 0.313 . High Flow Valve/Seat, able to handle 3-6 GPM Fuel Pumps Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI. This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
Specifications
| Pressure Range | 30-120 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 30 PSI |
| Maximum Pressure | 120 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 2 |
| Inlet Port Diameter | ORB-12 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black |
| Grade Type | Performance |
