Aeromotive
Aeromotive Fuel Pressure Regulator Return Style Universal 13301
- PART NUMBER:
- 13301
- MPN:
- 13101
- Availability:
- Ships from Manufacturer ( 2-3 Week Lead Time )
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- Fuel Pressure Regulators
- Material:
- Aluminum
- Finish:
- Red/Black Anodized
- Style:
- Return
- Location:
- Inline
- Vacuum/Boost Comensation Ratio:
- 1:1
- Inlet/Outlet Qty:
- 1/3
- Gauge Port:
- Yes
- Inlet Size:
- 3/8" NPT
- Outlet Size:
- 3/8" NPT
- Return Qty:
- 1
- Return Size:
- 3/8" NPT
- Pressure Range (psi):
- 3-65
Description

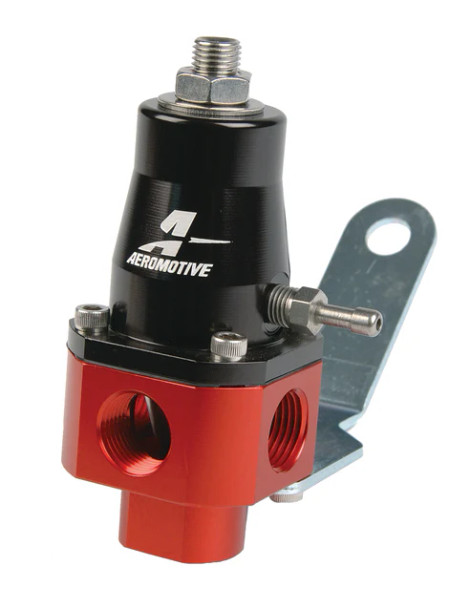

Aeromotive Fuel Pressure Regulator Return Style Universal 13301
P/N 13301: Universal Return Style Regulator
A dual-purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high-pressure spring (included). It offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive return style regulator provides.
- Capable of regulating any fuel pump between 100 and 250 GPH.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- All ports are 3/8" NPT, with one inlet and three outlets on the main body and one return port on the bottom.
- Gasoline, ethanol, alcohol and diesel compatible.
- return style design provides the ultimate, dynamic fuel pressure control.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Note: (Requires a return line to be installed from the bottom of the regulator to the top of the tank.)
Specifications
| Pressure Range | 2-60 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 2 PSI |
| Maximum Pressure | 60 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 4 |
| Inlet Port Diameter | 3/8 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black/Red |
| Grade Type | Performance |
