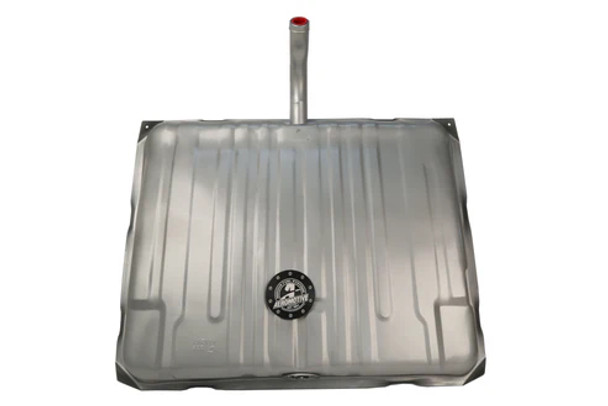

Aeromotive Gen II Stealth Fuel Tank 1964 Pontiac GTO

Name: Aeromotive Gen II Stealth Fuel Tank 1964 Pontiac GTO
Brand: Aeromotive
SKU: 16891
Price: 735.95 USD
Availability: InStock

$735.95

Current Stock:

Quantity:

Description

P/N 18119: Stealth Gen 2 Fuel Tank, '64 Pontiac GTO, 240lph pump

Perfect for EFI and carbureted engines
OEM appearance and 20-gallon capacity
High flow, quiet 200 or 340 Stealth fuel pump
0-90 Ohm fuel level sending unit included
Billet hat with ORB-06 outlet and return ports
Utilizes OEM fuel outlet location and seal
Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control
Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
Utilizes stock mounting straps, filler cap and vent

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

	#18119 - 200 lph	#18419 - 340 lph
Series	Gen II Stealth	Gen II Stealth
Capacity	20 Gallons	20 Gallons
Baffled	Yes	Yes
Material	Steel	Steel
Universal Or Specific Fit	Specific	Specific
Color	Silver	Silver
Filler Neck Attached	Yes	Yes
Width	11 Inches	11 Inches
Fuel Type	Gas	Gas
Grade Type	Performance	Performance
Height	33 Inches	33 Inches
Length	40 Inches	40 Inches
Mounting Hardware Included	No	No
Mounting Straps Included	No	No
Sender Ohm Range	0-90	0-90
Sending Unit Included	Yes	Yes
Fuel Pump Included	Yes	Yes
Maximum Flow Rating	200LPH	340LPH
Maximum Pressure	95 PSI	105 PSI
Pump Design	Turbine Impeller	Turbine Impeller
Motor Style	Brushed	Brushed
Integrated Controller	No	No
Pulse Width Modulation Compatible	Yes	Yes
Outlet Type	Female	Female
Outlet Outside Diameter	ORB-06	ORB-06
Return Fitting Size	ORB-06	ORB-06
Maximum Current Draw	8.3A @ 40PSI	13A @ 40PSI
Voltage	12-16V	12-16V
Negative Ground	Yes	Yes
Terminal Gender	Male	Male
Terminal Quantity	3	3
Terminal Type	Threaded Stud	Threaded Stud
