Aeromotive

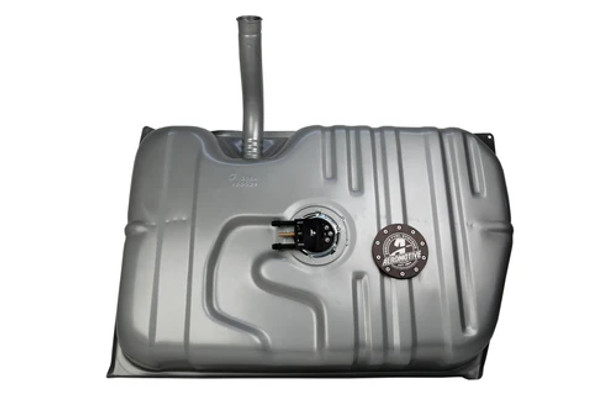

Aeromotive Gen II Stealth Fuel Tank 1978-88 Monte Carlo/Malibu

Availability:
Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:
FREE OVER $98 IN US 48
Type:
Fuel Tank Kits
Material:
Steel
Fuel Type:
Gas
Fuel Tank Capacity:
17 Gallons
Baffled Tank:
Yes
Flow Rate:
200 lph / 340 lph
Mounting Hardware Included:
No
  • Aeromotive Gen II Stealth Fuel Tank 1978-88 Monte Carlo/Malibu
  • Aeromotive Gen II Stealth Fuel Tank 1978-88 Monte Carlo/Malibu
  • Aeromotive Gen II Stealth Fuel Tank 1978-88 Monte Carlo/Malibu
  • Aeromotive Gen II Stealth Fuel Tank 1978-88 Monte Carlo/Malibu
$735.95

Description

Aeromotive Gen II Stealth Fuel Tank 1978-88 Monte Carlo/Malibu

P/N 18151: '78-'88 Monte Carlo / Malibu
With Stealth 200 pump and 0-90 ohm sending unit

  • Perfect for EFI and carbureted engines
  • OEM appearance and 17-gallon capacity
  • High flow, quiet 200 or 340 Stealth fuel pump
  • 0-90 Ohm fuel level sending unit included
  • Billet hat with AN-06 outlet and return ports
  • Utilizes OEM fuel outlet location and seal
  • Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control
  • Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
  • Utilizes stock mounting straps, filler cap and vent
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 18151 - 200lph Stealth Gen II Tank Application Specs:

    • Fuel Injected Engines (gasoline):
        • Up to 600 HP – naturally aspirated.
        • Up to 450 HP – forced air induction.
    • Carbureted Engines (gasoline):
        • Up to 750 HP – naturally aspirated.
        • Up to 600 HP – forced air induction.

P/N 18451 - 340lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:
  • Gasoline: up to 850 HP – naturally aspirated.
  • Gasoline: up to 700 HP – forced air induction.
  • E85: up to 595 HP – naturally aspirated.
  • E85: up to 490 HP – forced air induction.
Carbureted Engines:
  • Gasoline: up to 1000 HP – naturally aspirated.
  • Gasoline: up to 850 HP – forced air induction.
  • E85: up to 700 HP – naturally aspirated.
  • E85: up to 595 HP – forced air induction.

Specifications

 #18151 - 200 lph#18451 - 340 lph
Series Gen II Stealth Gen II Stealth
Capacity 17 Gallons 17 Gallons
Baffled Yes Yes
Material Steel Steel
Universal Or Specific Fit Specific Specific
Color Silver Silver
Filler Neck Attached Yes Yes
Width 11 Inches 11 Inches
Fuel Type Gas Gas
Grade Type Performance Performance
Height 33 Inches 33 Inches
Length 40 Inches 40 Inches
Mounting Hardware Included No No
Mounting Straps Included No No
Sender Ohm Range 0-90 0-90
Sending Unit Included Yes Yes
Fuel Pump Included Yes Yes
Maximum Flow Rating 200LPH 340LPH
Maximum Pressure 95 PSI 105 PSI
Pump Design Turbine Impeller Turbine Impeller
Motor Style Brushed Brushed
Integrated Controller No No
Pulse Width Modulation Compatible Yes Yes
Outlet Type Female Female
Outlet Outside Diameter ORB-06 ORB-06
Return Fitting Size ORB-06 ORB-06
Maximum Current Draw 8.3A @ 40PSI 13A @ 40PSI
Voltage 12-16V 12-16V
Negative Ground Yes Yes
Terminal Gender Male Male
Terminal Quantity 3 3
Terminal Type Threaded Stud Threaded Stud
