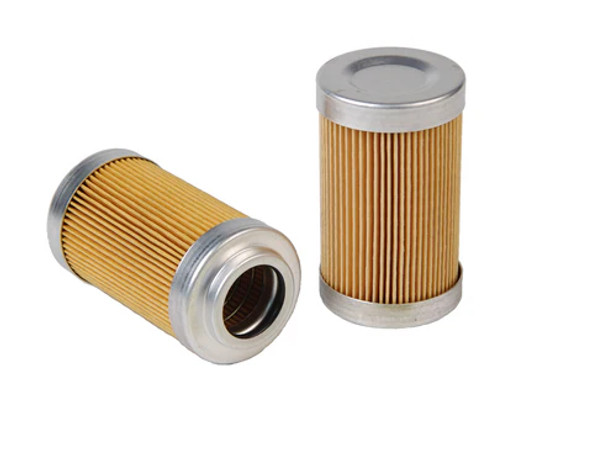

Aeromotive Inline Fuel Filter Cellulose Element 10 Micron For ORB-10 Housings 12601

P/N 12601 10-M Fabric Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2" OD x 5-1/2" long ORB-10 filter housings.
Includes new housing o-ring to reseal the filter assembly.
Suitable for use on the pressure side of a fuel pump only, with gasoline and diesel based fuels.
Direct Replacement Filter Element For Filter P/N's:
P/N 12301 ,   P/N 12321 ,   P/N 12351 ,   P/N 12306 ,   P/N 12347 ,   P/N 12377 ,   P/N 12387 ,   P/N 12333
Not for use with alcohol based fuels including ethanol (more than 10%) and methanol.
For comparable filter element suitable for alcohol based fuels see P/N 12650
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Not recommended for alcohol fuels including ethanol and methanol.
• Over 60-sq. inches of element surface area supports high flow while providing good service life.
• Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop.
• Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Ideal for gasoline, EFI engines with small to medium Aeromotive fuel pumps from the Phantom 200 through the Eliminator pump.
• Popular for demanding gasoline, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.

If you wish to change the filter in your housing from a P/N 12601 10-micron to an element with a different micron rating, you may choose one of the following options:

• P/N 12604  100-micron Stainless Steel Mesh
• P/N 12635    40-micron Stainless Steel Mesh
