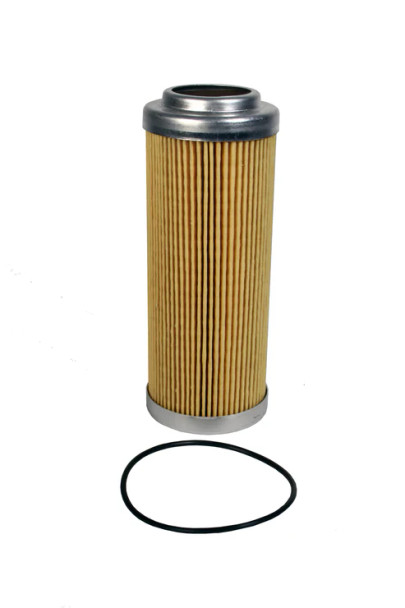

Aeromotive Inline Fuel Filter Cellulose Element 10 Micron For ORB-12 Housings 12610

P/N 12610 10-M Fabric Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2-1/2" OD x 7" long ORB-12 filter housings.
Includes new housing o-ring to reseal the filter assembly.
Suitable for use on the pressure side of a fuel pump only, with gasoline and diesel based fuels.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Direct Replacement Filter Element For Filter P/N's:
P/N 12310 ,   P/N 12311  ,   P/N 12360
Not for use with alcohol based fuels including ethanol (more than 10%) and methanol
For comparable filter element suitable for alcohol based fuels see P/N 12639

• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Not recommended for alcohol fuels including ethanol and methanol.
• Over 90-sq. inches of element surface area supports extreme flow while providing good service life.
• Flow capacity of up to 400 GPH (6.66 GPM) with less than 1-PSI pressure drop.
• Supports up to 4,000 Flywheel HP, Forced Induction, on gasoline.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Ideal for gasoline, EFI engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
• Popular for demanding gasoline, carbureted engine applications using Aeromotive A2000, A3000 and the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.

If you wish to change the filter in your housing from a P/N 12610 10-micron to an element with a different micron rating, you may choose one of the following options:

• P/N 12602  100-micron Stainless Steel Mesh
• P/N 12642    40-micron Stainless Steel Mesh
