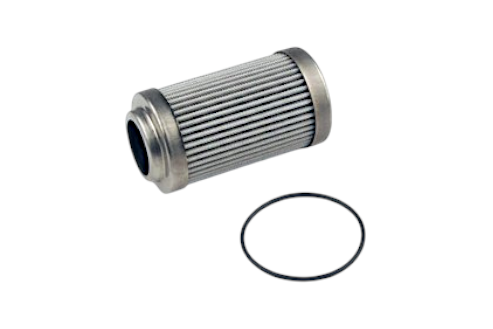

Aeromotive Inline Fuel Filter Element 10 Micron For ORB-10 Housings 12650

Service element for Aeromotive Billet, in-line filters
Fits all 2" OD x 5-1/2" long ORB-10 filter housings.
Includes new housing o-ring to reseal the filter assembly.
Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol fuels.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Direct Replacement Filter Element For Filter P/N's:
P/N 12340 ,   P/N 12346 ,   P/N 12350 ,   P/N 12345 ,   P/N 12375 ,   P/N 12385
Recommended for use with alcohol based fuels including ethanol and methanol.
For comparable filter element suitable for gasoline only based fuels see P/N 12601

• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Approved for use in alcohol fuels including ethanol and methanol.
• Over 60-sq. inches of element surface area supports high flow while providing good service life.
• Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop.
• Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline.
• Supports up to 1,400 Flywheel HP Forced Induction on E85.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Ideal for gasoline and ethanol burning EFI engines with small to medium Aeromotive fuel pumps, from the Phantom 200 through the Eliminator pump.
• Popular for demanding gasoline and ethanol/methanol, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.

If you wish to change the filter in your housing from a P/N 12650 10-micron to an element with a different micron rating, you may choose one of the following options:

• P/N 12604  100-micron Stainless Steel Mesh
• P/N 12635    40-micron Stainless Steel Mesh
