Aeromotive
Aeromotive Inline Fuel Filter Microglass Element 10 Micron For ORB-12 Housings 12639
- PART NUMBER:
- 12639
- MPN:
- 12639
- Availability:
- Ships from Manufacturer
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- Inline Fuel Filters
- Element Material:
- Microglass
- Filtering Capability:
- 10 micron
Description

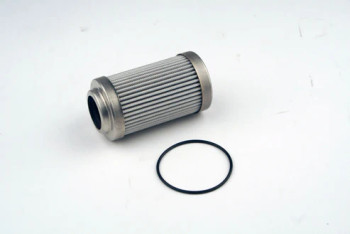

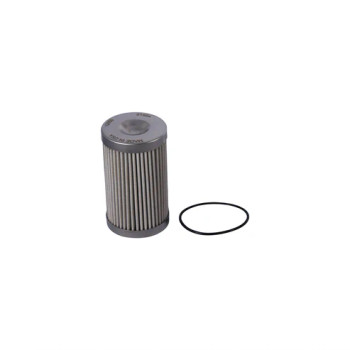

Aeromotive Inline Fuel Filter Microglass Element 10 Micron For ORB-12 Housings 12639
P/N 12639 10-M Microglass Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2-1/2" OD x 7" long ORB-12 filter housings.
Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol fuels.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Direct Replacement Filter Element For Filter P/N's:
P/N 12339 , P/N 12341
Recommended for use with alcohol based fuels including ethanol and methanol.
For comparable filter element suitable for gasoline only based fuels see P/N 12610
- Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
- Approved for use in alcohol fuels including ethanol and methanol.
- Over 90-sq. inches of element surface area supports extreme flow while providing good service life.
- Flow capacity of up to 400 GPH (6.66 GPM) with less than 1-PSI pressure drop.
- Supports up to 4,000 Flywheel HP, Forced Induction, on gasoline.
- Supports up to 2,800 Flywheel HP, Forced Induction on Ethanol.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Ideal for gasoline and ethanol burning EFI engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
- Popular for demanding gasoline and ethanol carbureted engine applications using Aeromotive A2000, A3000 and the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
If you wish to change the filter in your housing from a P/N 12639 10-micron Microglass element to an element with a different micron rating, you may choose one of the following options:

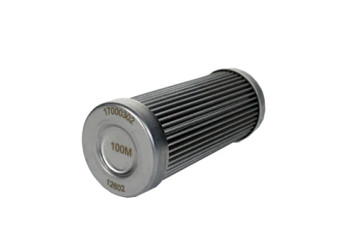

- P/N 12602 100-micron Stainless Steel Mesh
- P/N 12642 40-micron Stainless Steel Mesh
