Aeromotive

Aeromotive SS-Series Carbureted Fuel Pressure Regulator 13201

Part Number:: 13201
UPC:
MPN:: 13201
Availability:: Ships from Manufacturer ( 2-3 Week Lead Time )
Shipping:: Free over $98 in U.S. 48
Type:: Fuel Pressure Regulators
Material:: Aluminum
Finish:: Red/Black Anodized
Style:: Non-Return
Vacuum/Boost Comensation Ratio:: None
Inlet/Outlet Qty:: 1/2
Gauge Port:: Yes
Inlet Size:: -6 AN
Outlet Size:: -6 AN
Return Qty:: None
Return Size:: N/A
Pressure Range (psi):: 5-10

$145.35

Current Stock:

Quantity:

Description

Description

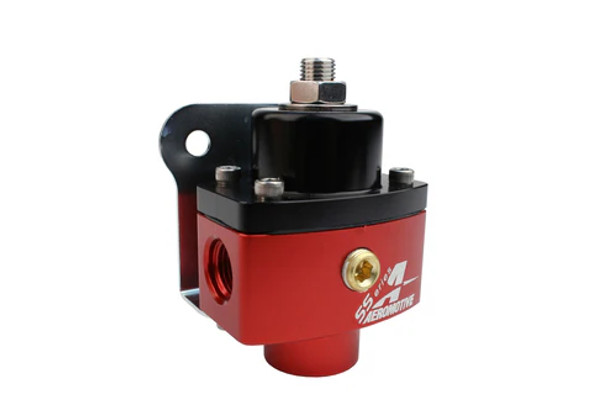

Aeromotive SS-Series Carbureted Fuel Pressure Regulator 13201

P/N 13201 SS-Series ORB-06 Carb Regulator
Dead-Head Regulator for up to 750 FWHP on gas.
Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator. Not rated for alcohol fuels, ethanol or methanol.

Adjustable from 5-10 PSI.
P/N 13201 provides ORB-06 inlet and outlet ports.
Dedicated 1/8' NPT gauge port.
Regulator re-seats when the needle and seat closes, preventing pressure creep.
Mounting bracket included.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Not rated for alcohol fuels, ethanol or methanol.

Specifications

Pressure Range	5-10 PSI
Adjustable	Yes
Minimum Pressure	5 PSI
Maximum Pressure	10 PSI
Mounting Bracket Included	Yes
Port Quantity	3
Inlet Port Diameter	ORB-06
Inlet Gender	Female
Gauge Included	No
Color	Black/Red
Grade Type	Performance
