Boss Hog Torque Converters

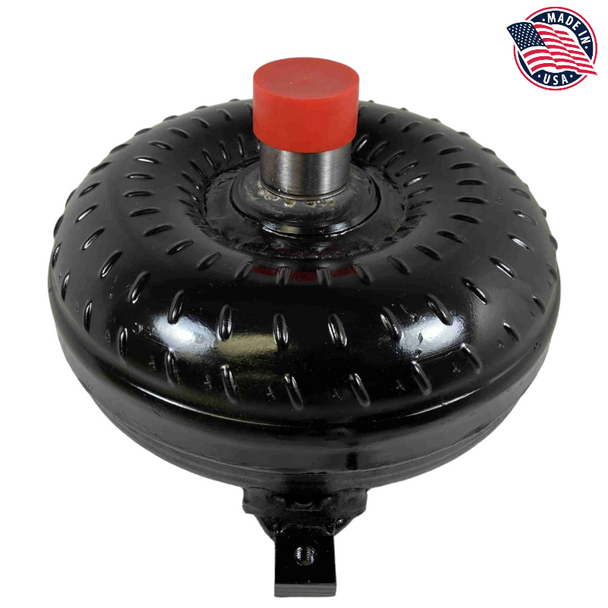

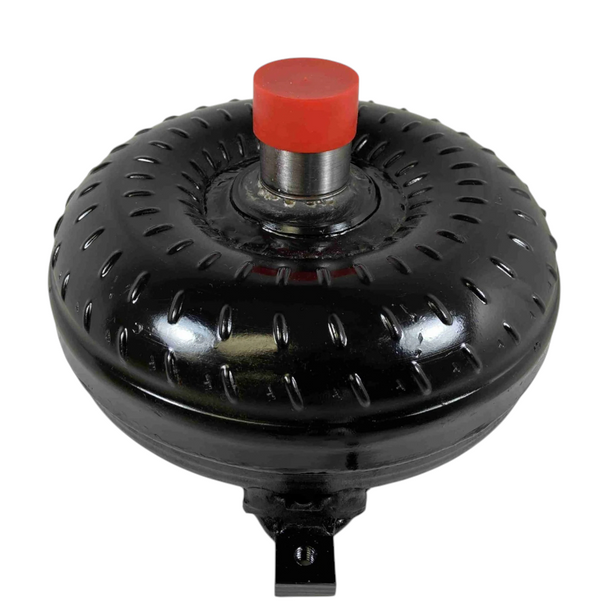

Boss Hog GM 4L60E/4L65E Torque Converter 300mm - Street Bandit Series
- Availability:
- Ships from Manufacturer ( 1-2 Week Lead Time )
- Shipping:
- Free over $98 in U.S. 48
- Type:
- 4L60E/4L65E Torque Converters
- Transmission:
- 4L60E/4L65E
- Diameter Core (in.):
- 9.6
- Bellhousing (mm):
- 300
- Bolt Pattern (in.):
- 11.125
- Balanced:
- Yes
- Anti-Ballooning Plate:
- No
- Mounting Hardware Included:
- No
- Notes:
- Fits 98-02 F-Body LS1/LS2 and 99-up Trucks w/4.8,5.3,6.0L
- Notes:
- Will not fit 97-05 Corvette
Description
Boss Hog GM 4L60E/4L65E Torque Converter 300mm - Street Bandit Series
GM 4L60E / 4L65E – 300mm Street Bandit Series.
Stall Range:
9.6 inch Core.
Bolt Pattern: 11.125 inches
30 Spline.
1.703 inch Crank Pilot.
Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY) (Locking NUT & BOLT )
NO Anti-Balloon Plate.
Converter Features:
- Made in USA
- Welded, not Furnace Brazed
- Industrial Torrington Type Bearings
- Aircraft Aluminum Washers
The Street Bandit Series Converters are designed to handle as much as 650hp.
It is recommended to upgrade to the “Outlaw” series torque converter if you have any power adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brake.
If you are looking for a custom-built torque converter with specific stall speed, a custom mounting configuration, or another unique requirement, give us a call.
Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup. Please contact us for more information.
Warranty Information
