Classic Instruments

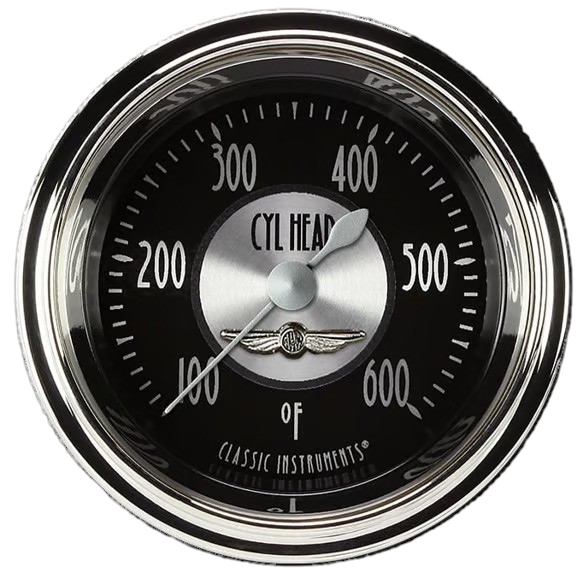

Classic Instruments All American Tradition 2 1/8" Cylinder Head Temp. Gauge AT197SHC

Part Number:
AT197SHC
MPN:
AN397SLC
Availability:
Ships from Manufacturer
Shipping:
Free over $98 in U.S. 48
Type:
Cylinder Head Temp. Gauges
Gauge Style:
Analog
Gauge Range:
100-600°F
  • Classic Instruments All American Tradition 2 1/8" Cylinder Head Temp. Gauge AT197SHC
  • Classic Instruments All American Tradition 2 1/8" Cylinder Head Temp. Gauge AT197SHC
  • Classic Instruments All American Tradition 2 1/8" Cylinder Head Temp. Gauge AT197SHC
  • Classic Instruments All American Tradition 2 1/8" Cylinder Head Temp. Gauge AT197SHC
$316.95

Description

Classic Instruments All American Tradition 2 1/8" Cylinder Head Temp. Gauge AT197SHC

All American Tradition 2 1/8" Full sweep Cylinder Head Temp. gauge with standard stainless high step bezel and curved glass lens.

Quality, Service and Value are not new. These have been primary objectives for over 45 years. Even with most design work now being done with computers, all the time, effort, and care essential to designing a long-lasting, high-quality product are still applied. Products are built better, or not built at all.
Each gauge is designed, assembled, and calibrated with pride and quality in Boyne City, Michigan. Proudly "Made in the USA" products are designed and built for street rods by street rodders.
Innovation defines the approach. This is the first and only manufacturer to combine all-electrical instrumentation and micro-chip technology with the finest quality, accuracy, and vintage styling available at any price. Unique concepts and trend-setting designs have remained ahead of the industry for over 37 years.
Design sensitivity remains a priority. New and original designs meet the unique needs of automotive enthusiasts, while continuing research and development ensures access to the finest in design, quality, technology, and visual appeal for hot rod applications.
Quality orientation is central. Each part is designed and assembled to exacting, top-of-the-line specifications and tolerances. Component testing at each stage of the assembly process ensures accuracy and reliability. If a product cannot be built better than any alternative, it is not built.
Customer responsiveness is a key focus. Product purchase includes access to top-tier customer service. Complete step-by-step, easy-to-follow instructions, along with helpful technical assistance, are available by phone or computer directly from the shop.

Features:

  • Warning light output for additional warning indicator lights
  • Small 2 1/8" hole size
  • Configurable LED lighting, with choice of Warm White or Cool White lights
  • .5 - 4.5VDC analog datalogging output
  • Type K thermocouple, with 14mm copper lug and 10ft. stainles steel braided wire, included
  • Microprocessor technology for precision
  • Rugged air core movement for durability
  • Push button calibration
  • Full sweep provides increased accuracy
  • Integrated red warning light, illuminates entire gauge red when activated
  • A singleconnection wire harness
  • Completely electric
  • Thermocouple amplifier included

Brand Classic Instruments
Category Body
Emission Code 6
Gauge Diameter 2 1/8"
Gauge Face Color Black/Gray
Illuminated Yes
Mounting Hardware Included Yes
Part Type Engine Cylinder Head Temperature Gauge
Product Type individual gauge
Sub Category Instrument Panel
Sweep Full Sweep
Temperature Range 100-600°F
Universal Or Specific Fit Universal
Warranty Manufacturer's 7 Year Warranty
Weight 2
UPC 090127621301
Part Number AT197SHC
