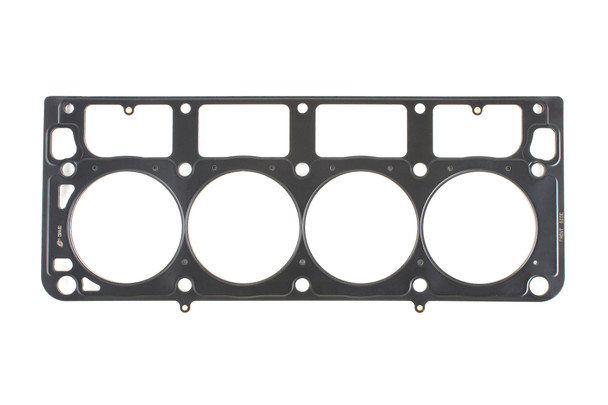

Cometic LS 4.100 Bore MLX Head Gasket 1/2" Studs C15747-052

LS 4.100" Bore. 0.052" Compressed Thickness

Seal in Ultimate Power with Cometic MLX Technology

When you are pushing your GM LS engine to its absolute limits, standard head gaskets just won't cut it. The Cometic MLX (Multi-Layer Steel-X) Cylinder Head Gasket (Part # C15747-052) is engineered specifically to withstand the extreme cylinder pressures generated by high-horsepower, naturally aspirated, turbocharged, supercharged, or nitrous-fed LS Gen 3 and Gen 4 builds.

Featuring Cometic's innovative multi-layer design, this premium gasket integrates an extra fold-over stopper layer to create a robust mechanical seal around the combustion chamber. Say goodbye to combustion blow-by and hello to unyielding reliability.

Why Choose Cometic MLX Gaskets?

• No Sealants Required: Designed for a perfectly dry install, eliminating messy sealants and reducing installation error.
• Maximum Corrosion Resistance: Built from high-tensile stainless steel layers that won't degrade under intense heat or exposure to modern engine fluids.
• Smart Load Distribution: Embossed outer layers are coated on both sides with a specialized Viton rubber-elastomer blend, ensuring a micro-seal against minor block and head surface imperfections.
• Engineered for Premium Fasteners: Out-of-the-box compatibility with high-strength 1/2" head studs, perfect for race-prepped blocks.

Technical Specifications

• Brand: Cometic Gasket
• Part Number: C15747-052
• Engine Family: GM LS Gen III / IV Small Block V8
• Gasket Material: MLX (Multi-Layer Steel with Stopper Layer)
• Compressed Thickness: 0.052"
• Bore Diameter: 4.100"
• Fastener Clearance: Optimized for 1/2" Head Studs
• Quantity: Sold Individually (Fits Left or Right Side)

Fitment & Application Notes

This cylinder head gasket is universally non-directional and can be utilized on either the Left (Driver) or Right (Passenger) side of the engine.
