FiTech Fuel Injection

FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088

PART NUMBER:
71088
MPN:
71088
Availability:
Ships from Manufacturer
Shipping:
FREE OVER $98 IN US 48
Type:
Intake and Throttle Body Kits
Manifold Type:
Cathedral Port
Throttle Body Inlet Bore:
92mm
Material:
Aluminum
Finish:
Black
EGR:
No
Vacuum Ports:
Yes
Fuel Rails Included:
Yes
Fuel Injectors Included:
Yes
Fuel Injector Size:
36 lb/hr
Throttle Body Included:
Yes
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
  • FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088
$2,086.99

Description

FiTech Ultimate Rebel LS 500HP Cathedral Intake Inline Fuel Pump Master Kit 71088

Kit Features:

Ultimate Rebel LS 500 HP EFI System With Short Cathedral Intake & Inline Fuel Pump Master Kit

Introducing the FiTech Ultimate Rebel LS EFI System – a cutting-edge fuel injection solution that combines high-performance with a sleek and refined design. Building upon the success of the renowned FiTech Ultimate LS EFI System, the Rebel LS takes innovation a step further with its distinctive cleaner profile and enhanced features, making it the ultimate choice for modern engine conversions.

Designed for enthusiasts seeking both power and aesthetics, the Ultimate Rebel LS EFI System redefines the look and performance of your LS-powered vehicle. The standout feature of the Rebel LS system is its sleek and streamlined appearance, which seamlessly integrates with the engine bay, providing a cleaner and more polished aesthetic. The redesigned fuel rail bracket adds to the visual appeal, offering a fresh and modern touch that complements any engine setup.

Beneath its striking exterior, the Ultimate Rebel LS EFI System boasts the same advanced technology that FiTech is known for. Experience exceptional fuel delivery and engine control, optimizing your vehicle’s performance and efficiency. This system is tailored to LS engine conversions, ensuring a hassle-free installation process while delivering consistent and reliable results.

Key Features of the Ultimate Rebel LS EFI System:

  • Cleaner Profile: The Ultimate Rebel LS EFI System is engineered with a refined design that seamlessly integrates into your engine bay, elevating the visual appeal of your vehicle.
  • Thicker gauge manifold providing quieter injection.
  • Redesigned Fuel Rail Bracket: The innovative fuel rail bracket design not only enhances the appearance but also adds a touch of sophistication to your engine compartment.
  • Advanced Fuel Injection Technology: Benefit from FiTech’s cutting-edge fuel injection technology, ensuring precise fuel delivery and optimized engine performance.
  • Effortless Installation: Designed specifically for LS engine conversions, the Rebel LS system offers a user-friendly installation process that minimizes downtime.
  • Optimized Performance: Unlock the full potential of your LS-powered vehicle with improved throttle response, increased horsepower, and better fuel efficiency.
  • The most complete kit on the market; includes Manifold, ECU, Sensors, Throttle Body, Harness, Fuel Rails, Fuel Pressure Regulator, Throttle Cable Brackets, and more.
  • Boost/Nitrous Compatibility- Equipped with 3 Bar MAP Sensor (27 PSI).
  • E85 Compatible.

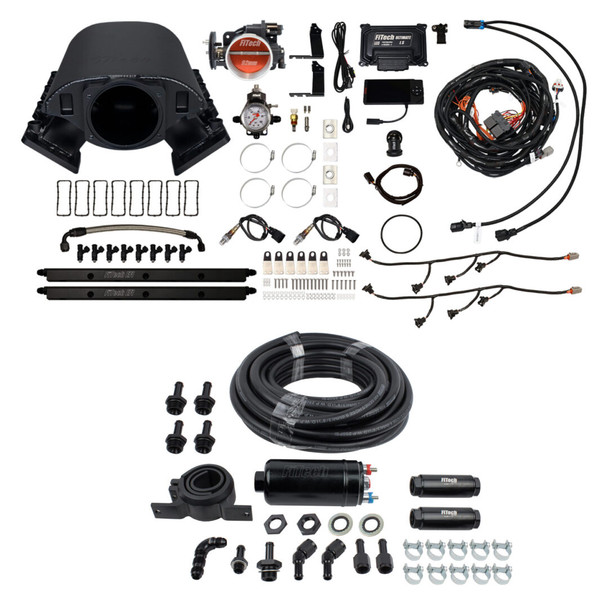

Kit Contents:

  • (1) Rebel LS1, LS2, LS6 Low Profile Intake Manifold with MAP & IAT Port
  • (1) Ultimate LS 92mm Throttle Body With Sensors
  • (8) 36 LB Injectors
  • (1) LS ECU
  • (1) LS1 Fuel Rail Kit
  • (1) Primary LS Harness
  • (2) EV1 Injector Sub Harness
  • (1) O2 Sensor Extension Sub Harness
  • (1) 3 Bar MAP Sensor
  • (1) IAT Sensor
  • (1) LS1/LS2 Knock Sensor Harness
  • (1) Go EFI Clamp On Oxygens Sensor Bung Kit
  • (1) Handheld Monitor for Ultimate LS
  • (1) FiTech Handheld Cable
  • (1) FiTech USB to USB C Cable
  • (2) FiTech Oxygen Sensors
  • (1) Premium Magnetic Handheld Mount
  • (1) Rebel Intake Throttle Cable Bracket with round hole
  • (1) Rebel Intake Throttle Cable Bracket with stock GM Cable notch
  • (1) Go Fuel Tight Fit Regulator With Pressure Gauge

Go Fuel Inline Pump Fuel Delivery Kit

Featuring an EFI-grade 255 L/PH inline external fuel pump designed for use in engines making up to 600 horsepower, the FiTech 50001 fuel delivery kit ensures that fuel in your street machine gets to where it needs to go. Also included in the kit is 40 feet of EFI-grade, 3/8-inch fuel hose designed to work as both inlet and return lines; two billet aluminum fuel filters; a 100-micron pre filter; a 10-micron post filter; barb fitting hose ends; and a mounting clamp for the electric pump.

  •  255 LPH fuel pump
  •  40 feet AN-6 fuel injection hose
  •  100 micron billet pre fuel filter
  •  10 micron billet post fuel filter
  • Black anodized AN-6 fittings
View AllClose

Warranty Information

3-Year Limited Warranty on FiTech EFI Systems WARRANTY ON THIS EFI SYSTEM IS SOLELY HANDLED BY FITECH FUEL INJECTION. FiTech extends the following limited warranty to the original purchaser of a FiTech EFI system purchased after November 1, 2022. FiTech warrants its products against defects in materials and workmanship, under normal use and service for 3 years from the date of original purchase. This applies only to the original purchaser and the parts must remain installed on the original vehicle for which they were purchased. This warranty is void if the product was improperly installed, was installed on a vehicle for which it was not designed, if it was modified in any manner, or was removed from the original vehicle and reinstalled on another vehicle. Coolant temperature sensors and oxygen sensors are not covered under this warranty. This warranty shall not apply to any product installed improperly, or contrary to FiTech's instructions, altered, misused, repaired or damaged from an accident, collision, or willful or negligent act. To make a claim under the terms of this Warranty, the original purchaser must contact FiTech tech support. If FiTech tech support deems the product in need of warranty service, proof of original purchase will be required. Purchaser must call FiTech Technical Support (951-340-2624) option 2 or email: Techmail@fitechefi.com, to obtain a Returned Material Authorization (RMA). Proof of purchase must clearly show the place of purchase, purchase price, product purchased, and date of purchase. Purchaser needs to register their product here: https://fitechefi.com/warranty-registration or using the mail-in registration form found in the product box. FiTech's 3-Year Limited Warranty does not cover factory refurbished parts, this warranty is only valid for new purchases from an authorized dealer. FiTech's liability is expressly limited to replacing or repairing the defective part or parts (refunds are not covered under FiTech's 3-year Limited Warranty). FiTech will have no liability for the cost of installation or removal of the defective product or for the cost of labor or any additional parts required to complete the installation of the replacement product. FiTech is not responsible for any shipping charges accrued during the warranty process/claim. In no event will FiTech be liable for any indirect, special, incidental, or consequential losses or damages (including but not limited to interruption of business or loss of business or profit) resulting from the use or inability to use the product, any breach of warranty, or any defect in the product, even if FiTech shall have been advised of the possibility of such potential damages or losses. Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. If the product is in the FiTech facility for repair, the amount of time the product is in repair will be added to the existing warranty period. In the event that your EFI System that is under warranty is in for repair and FiTech has authorized a replacement, and if that EFI System has been discontinued, FiTech will replace it with a similar product for the same application. The replacement EFI System will maintain the existing warranty period of the original EFI System. What is not covered under FiTech's 3-Year Limited Warranty: Offboard Sensors (oxygen sensors, and temperature sensors, are subjected to a 1-year limited warranty). Fuel pumps (Fuel pumps are subjected to a 1-year limited warranty. The customer must send photos of filters used in application. If the filter is completely clogged or contaminated, the fuel pump will not be covered under any FiTech warranty). Air Filters are subjected to a 1-year limited warranty on manufacturer defects only. The customer must send photos of filters used in application. Warranty cannot be claimed on air filters due to lack of maintenance. Fire Damage. Cracked footings or flanges on the base of EFI units due to over-tightening or improper installation. Removal or replacement costs. Shipping costs. Damage during shipping. Damage to related components. Costs incurred due to downtime of a vehicle. Vehicle transport or storage costs. Any product used in marine applications unless specifically stated for marine usage. Purchased replacement parts. (For example, replacements parts purchased outside of an approved FiTech warranty repair). Purchased replacement parts are subjected to a 1-year limited warranty on manufacturer defects only. Any product purchased from an unauthorized third party (for example: Amazon, eBay, Craigslist, etc.)
View AllClose
