DEATSCHWERKS

DeatschWerks 110mm In-line Fuel Filter 10 micron w/ Housing Kit 8-03-110-010K-10

PART NUMBER:
8-03-110-010K-10
MPN:
8-03-110-010K-10
Availability:
Ships from Manufacturer
Shipping:
Free over $98 in U.S. 48
Type:
Inline Fuel Filters
Filter Housing Material:
T6061 Aluminum
Filter Housing Finish:
Silver/Gray Anodized
Length (in.):
4.330
Inlet/Outlet Qty:
1/1
Inlet:
-10 AN
Outlet:
-10 AN
Element Included:
Yes
Element Material:
Stainless Steel Mesh
Filtering Capability:
10 microns
Quantity:
Sold as a Kit
Notes:
Includes two -10 AN male straight cut O-ring to -10 AN male fittings.
$132.00

Description

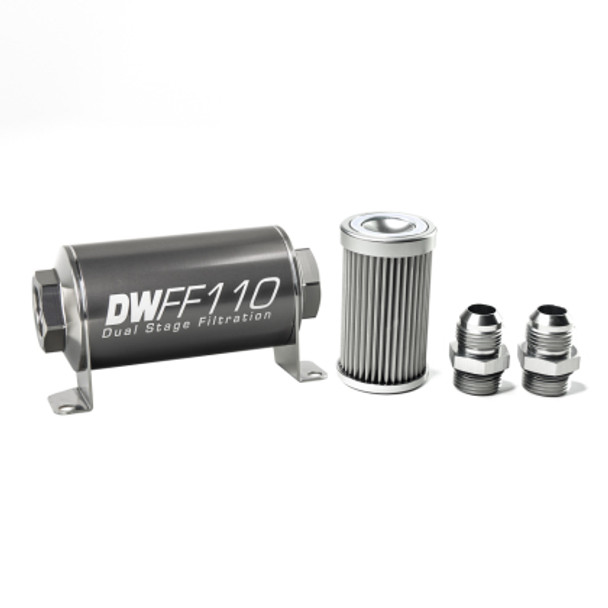

DeatschWerks 110mm In-line Fuel Filter 10 micron w/ Housing Kit 8-03-110-010K-10

In-line fuel filter element and housing kit, stainless steel 10 micron, -10AN, 110mm. Universal

The increasing popularity of ethanol-based fuels such as e10 and e85 has created well-documented challenges in fuel system maintenance. The new DW fuel filters feature an industry first dual-stage magneto-mechanical filter element. This provides an extra layer of protection by trapping contaminants of corrosion with a neodymium magnet prior to mechanical filtration.

By incorporating pleated, high surface area, stainless steel filtering material, the new DW fuel filters work equally well in non-ethanol based fuels. The stainless steel filters are compatible with a wide range of fuels including pump gas, race gas, MTBE, ethanol, methanol, and diesel. Superior life span, maximum fuel compatibility, and high temperature tolerance give DW stainless filter elements a distinct advantage over competitors’ glass and paper filter elements.

*Filter Housing Features*

  • 2” diameter for easy in-line mounting
  • 3 lengths for varying flow requirements (70, 110, and 160mm)
  • Anodized T6061 aluminum construction
  • -10 AN ORB inlet and outlet

*Filter Element Features*

  • Dual stage magneto-mechanical filtration
  • 35mm neodymium magnet
  • Pleated, high surface area stainless steel filter material
  • Fully serviceable and reusable
  • Available in 10-micron and 100-micron
  • Documented pressure drop vs flow on all elements
View AllClose

Warranty Information

Limited Warranty Policy - All DeatschWerks products are warrantied for a period of 36 months. Any exceptions to this 36 month warranty will be explicitly listed in the product information. Warranty period commences the date the product is sold to the original consumer purchaser. DeatschWerks will repair or replace, free of charge, any DeatschWerks product that fails to operate within manufacturers’ specifications for any reason whatsoever. This warranty does not cover any labor costs incurred in diagnosis, troubleshooting, removal, or reinstallation of the product, nor does it cover any consequential expenses such as: damage due to product failure. This warranty is limited to the original purchaser for the vehicle application for which it is intended and is not transferable to subsequent owners of the product. Please see Deatschwerks website for full Warranty Policy.
