FiTech Fuel Injection

FiTech Ultimate LS Standalone ECU & Wire Harness 70050

PART NUMBER:
70050
UPC:
854549007446
MPN:
70050
Shipping:
FREE OVER $98 IN US 48
Type:
Standalone ECU's
Self Tuning:
Yes
User Tunable:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
On Sale
Now: $875.00
Was: $959.00

Description

FiTech Ultimate LS Standalone ECU & Wire Harness 70050

This kit comes with the ECU & Wire Harness only from the LS Ultimate EFI Inductions Systems. Does not have transmission control.

This self-learning Ultimate LS ECU is the best solution for a standalone LS swap and replaces the OEM computer and harness. This kit is dedicated to LS or similar engines with crank and cam sensors. The Ultimate LS standalone kit will self-learn to most cam swaps. Usually only very large cam grinds will require additional tuning in the system. Easily tuned for even the most novice tuner, this kit includes a touch-screen controller for easy setup and configuration.

  • Application: LS or similar engines with crank and cam sensors.
    Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines. Contains a 3 BAR MAP sensor for power adder applications that supports up to 30 PSI of boost.
  • Note: This kit does not work with drive by wire throttle bodies and variable valve timing. These engines can be modified to remove these components.
    Not legal for use on pollution controlled vehicles: FiTech’s Ultimate LS System is not approved for use on emission controlled vehicles. This system is designed to control the EFI and ignition on LS based engines being retrofit into older vehicles that do not require emission controls.

Features

  • Self-learning ECU with touch screen controller for easy setup and configuration.
  • Sequential fuel and spark control with individual cylinder trim.
  • 3 BAR MAP sensor automatically detects up to 30 psi boost.
  • Stainless O2 Sensor bung (clamp or weld on).
  • 24X and 58X crank and cam compatible.
  • Two programmable fan control outputs.
  • Tach output driver for most tachometers (5V).
  • Output driver for most speedometers.
  • Compatible with car and truck coils.
  • On the fly programmable target AFR and timing (if desired).
  • Fuel pump relay output.
  • Custom wire harness (uses factory coil pack sub harness).
  • Knock sensor control.

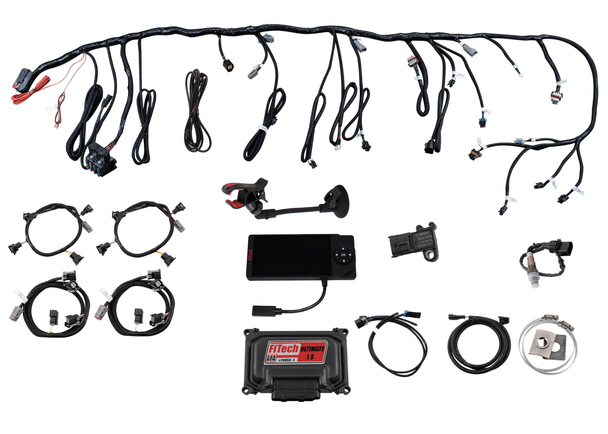

Kit Contents

  • LS ECU.
  • Plug and play primary wiring harness.
  • Hand-held controller with color touch screen and cable.
  • Windshield mount for touch screen controller.
  • 3 BAR MAP Sensor.
  • O2 Sensor.
  • Stainless Oxygen Sensor bung kit (Clamp or weld on).
  • Two programmable fan control outputs.
View AllClose

Warranty Information

-------------One Year Limited Warranty on FiTech EFI Systems ------------- ( Purchased before November 1) FiTech extends the following limited warranty to the original purchaser of a FiTech EFI system purchased before November 1, 2022. FiTech warrants its products against defects in materials and workmanship, under normal use and service for 1 year from the date of original purchase. This applies only to the original purchaser and the parts must remain installed on the original vehicle for which they were purchased. This warranty is void if the product was improperly installed, was installed on a vehicle for which it was not designed, if it was modified in any manner, or was removed from the original vehicle and reinstalled on another vehicle. This warranty shall not apply to any product installed improperly, or contrary to FiTech's instructions, altered, misused, repaired or damaged from an accident, collision, or willful or negligent act. To make a claim under the terms of this Warranty, the original purchaser must contact FiTech tech support. If FiTech tech support deems the product in need of warranty service, proof of original purchase will be required. Purchaser must call FiTech Technical Support (951-340-2624) option 2 or email: Techmail@fitechefi.com, to obtain a Returned Material Authorization (RMA). Proof of purchase must clearly show the place of purchase, purchase price, product purchased, and date of purchase. FiTech's liability is expressly limited to replacing or repairing the defective part or parts (refunds are not covered under FiTech's 1-year Limited Warranty). FiTech will have no liability for the cost of installation or removal of the defective product or for the cost of labor or any additional parts required to complete the installation of the replacement product. FiTech is not responsible for any shipping charges accrued during the warranty process/claim. In no event will FiTech be liable for any indirect, special, incidental, or consequential losses or damages (including but not limited to interruption of business or loss of business or profit) resulting from the use or inability to use the product, any breach of warranty, or any defect in the product, even if FiTech shall have been advised of the possibility of such potential damages or losses. Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. If the product is in the FiTech facility for repair, the amount of time the product is in repair will be added to the existing warranty period. In the event that your EFI System that is under warranty is in for repair and FiTech has authorized a replacement, and if that EFI System has been discontinued, FiTech will replace it with a similar product for the same application. The replacement EFI System will maintain the existing warranty period of the original EFI System. Fuel Pumps and Air Filters: Fuel pumps (Fuel pumps are subjected to a 1-year limited warranty. The customer must send photos of filters used in application. If the filter is completely clogged or contaminated, the fuel pump will not be covered under any FiTech warranty). Air Filters are subjected to a 1-year limited warranty on manufacturer defects only. The customer must send photos of filters used in application. Warranty cannot be claimed on air filters due to lack of maintenance. What is not covered under FiTech's 1-Year Limited Warranty: Fire Damage. Cracked footings or flanges on the base of EFI units due to over-tightening or improper installation. Removal or replacement costs. Shipping costs. Damage during shipping. Damage to related components. Costs incurred due to downtime of a vehicle. Vehicle transport or storage costs. Any product used in marine applications unless specifically stated for marine usage. Any product purchased from an unauthorized third party (for example: Amazon, eBay, Craigslist, etc.) -----------3-Year Limited Warranty on FiTech EFI Systems ------------------- (Purchased after November 1st, 2022) WARRANTY ON THIS EFI SYSTEM IS SOLELY HANDLED BY FITECH FUEL INJECTION. DO NOT CONTACT THE SELLER. FiTech extends the following limited warranty to the original purchaser of a FiTech EFI system purchased after November 1, 2022. FiTech warrants its products against defects in materials and workmanship, under normal use and service for 3 years from the date of original purchase. This applies only to the original purchaser and the parts must remain installed on the original vehicle for which they were purchased. This warranty is void if the product was improperly installed, was installed on a vehicle for which it was not designed, if it was modified in any manner, or was removed from the original vehicle and reinstalled on another vehicle. Coolant temperature sensors and oxygen sensors are not covered under this warranty. This warranty shall not apply to any product installed improperly, or contrary to FiTech's instructions, altered, misused, repaired or damaged from an accident, collision, or willful or negligent act. To make a claim under the terms of this Warranty, the original purchaser must contact FiTech tech support. If FiTech tech support deems the product in need of warranty service, proof of original purchase will be required. Proof of purchase must clearly show the place of purchase, purchase price, product purchased, and date of purchase. Purchaser needs to register their product here: https://fitechefi.com/warranty-registration or using the mail-in registration form found in the product box. FiTech's 3-Year Limited Warranty does not cover factory refurbished parts, this warranty is only valid for new purchases from an authorized dealer. FiTech's liability is expressly limited to replacing or repairing the defective part or parts (refunds are not covered under FiTech's 3-year Limited Warranty). FiTech will have no liability for the cost of installation or removal of the defective product or for the cost of labor or any additional parts required to complete the installation of the replacement product. FiTech is not responsible for any shipping charges accrued during the warranty process/claim. In no event will FiTech be liable for any indirect, special, incidental, or consequential losses or damages (including but not limited to interruption of business or loss of business or profit) resulting from the use or inability to use the product, any breach of warranty, or any defect in the product, even if FiTech shall have been advised of the possibility of such potential damages or losses. Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. If the product is in the FiTech facility for repair, the amount of time the product is in repair will be added to the existing warranty period. In the event that your EFI System that is under warranty is in for repair and FiTech has authorized a replacement, and if that EFI System has been discontinued, FiTech will replace it with a similar product for the same application. The replacement EFI System will maintain the existing warranty period of the original EFI System. What is not covered under FiTech's 3-Year Limited Warranty: Offboard Sensors (oxygen sensors, and temperature sensors, are subjected to a 1-year limited warranty). Fuel pumps (Fuel pumps are subjected to a 1-year limited warranty. The customer must send photos of filters used in application. If the filter is completely clogged or contaminated, the fuel pump will not be covered under any FiTech warranty). Air Filters are subjected to a 1-year limited warranty on manufacturer defects only. The customer must send photos of filters used in application. Warranty cannot be claimed on air filters due to lack of maintenance. Fire Damage. Cracked footings or flanges on the base of EFI units due to over-tightening or improper installation. Removal or replacement costs. Shipping costs. Damage during shipping. Damage to related components. Costs incurred due to downtime of a vehicle. Vehicle transport or storage costs. Any product used in marine applications unless specifically stated for marine usage. Any product purchased from an unauthorized third party (for example: Amazon, eBay, Craigslist, etc.)
