Haltech

Haltech IC-7 Digital Dash Kit HT-067010

Part Number:
HT-067010
MPN:
HT-067010
Availability:
Ships from Manufacturer
Shipping:
Free over $98 in U.S. 48
Type:
Digital Displays
Display Type:
TFT
Touchscreen:
No
Width (in.):
8.54
Height (in.):
4.80
Depth (in.):
1.02
Resolution:
800 x 480
Quantity:
Sold as a Kit
  • Haltech IC-7 Digital Dash Kit HT-067010 (HT-067010)
  • Haltech IC-7 Digital Dash Kit HT-067010 (HT-067010)
  • Haltech IC-7 Digital Dash Kit HT-067010
  • Haltech IC-7 Digital Dash Kit HT-067010 (HT-067010)
$1,265.00

Description

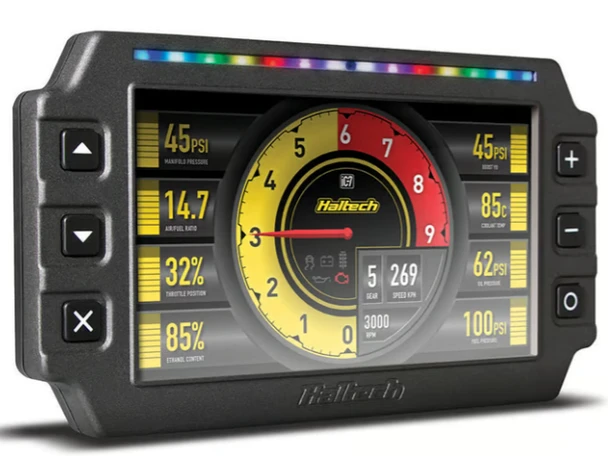

Haltech IC-7 Digital Dash Kit HT-067010

DASH OVERVIEW
With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring custom screen displays,I/O sharing (for Haltech Elite & Nexus ECU's only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

• Ideal replacement for individual analogue gauge clusters.
• Easy to install and configure.
• User adjustable brightness control with automatic dimming.
• User configurable channels, units and alarms.
• User definable Inputs & Outputs
• 9 x Analog Voltage Inputs (AVI)
• 3 x Digital Pulsed Inputs (DPI)
• 1 x Tachometer input
• 4 x Digital Pulsed Outputs (DPO)
• 14 programmable, seven colour shift light LEDs.
• On-board datalogging (512MB)
• Controlled via easily accessible, face-mounted control buttons.
• Configuration via Haltech software and USB cable.
• IP64 (Dust-tight and protected against water splashes).

All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (including spare pins for input wiring), DTM-4 to DTM-4 CAN extension cable 3.0m (118in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide.

Notes: OBD-II and Stand-Alone versions also available.

View AllClose

Warranty Information

Haltech limited warranty Unless specified otherwise, Haltech warrants its products to be free from defects in material or workmanship for a period of 12 months from the date of purchase. If the Haltech product is found to be defective as mentioned above, it will be replaced or repaired if returned prepaid along with proof of purchase. Proof of purchase in the form of a copy of the original purchase invoice, receipt or bill of sale which indicates that the product is within the warranty period, must be presented to obtain warranty service. Replacement or repair of a defective product shall constitute the sole liability of Haltech. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representations, either expressed or implied, including any implied warranty of merchantability or fitness. In no event shall Haltech, be liable for special or consequential damages.
