Katech

Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974

Part Number:
KAT-A7974
MPN:
KAT-A7974
Availability:
Ships from Manufacturer
Shipping:
Free over $98 in U.S. 48
Type:
High Volume Oil Pumps
Oil Pump Volume:
High Capacity
Oil Pump Style:
Dry Sump
Notes:
Designed as a direct replacement for the discontinued GM LS9 Dry Sump Oil Pump (GM #12578147). Fitment should always be verified for custom engine swaps and non-OEM applications.
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
  • Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974
$1,699.99

Description

Katech TrackFlow GM LS9 Billet Scavenge Dry Sump Oil Pump High-Pressure, High-Capacity KAT-A7974

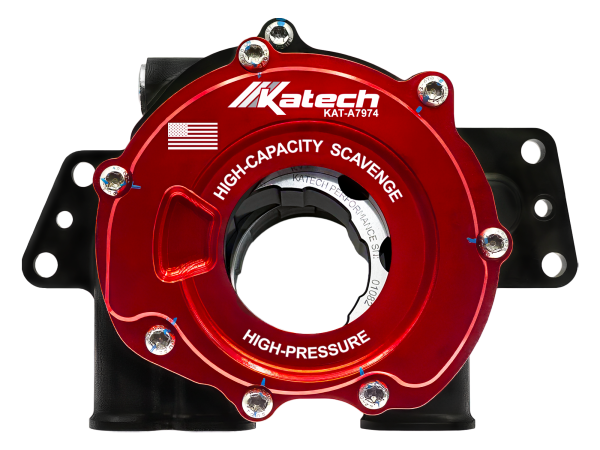

Katech TrackFlow™ LS9 Billet High-Pressure High-Capacity Scavenge Dry Sump Oil Pump

NO CORE · NO COMPROMISE · READY FOR THE TRACK

  • The Katech TrackFlow™ LS9 Billet High-Capacity Scavenge Dry Sump Oil Pump is the ultimate replacement solution for LS9 dry sump engines demanding uncompromising oiling performance.
  • Engineered as a direct replacement for the discontinued GM OEM LS9 oil pump (GM #12578147), the Katech TrackFlow™ LS9 Oil Pump eliminates the need for a core exchange while delivering increased scavenge capacity, billet durability, and improved oil control for high-RPM and track use.
  • Built for precision and durability, the Katech TrackFlow™ LS9 Oil Pump delivers increased scavenge capacity over both the factory GM LS9 pump and Katech’s Ported OEM LS9 Oil Pump Upgrade, helping maintain superior oil control under demanding conditions.

Features & Benefits

  • Direct OEM Replacement: Fits GM LS9 dry sump systems and replaces the discontinued GM #12578147 oil pump with no core required.
  • Enhanced Scavenge Performance: 62% increased scavenge capacity compared to the GM OEM LS9 oil pump and 44% increased scavenge capacity compared to the Katech High-Capacity Scavenge Ported OEM LS9 Oil Pump Upgrade.
  • Full Billet Construction: Machined from premium-grade billet aluminum for strength, durability, and reliability.
  • CNC Ported & Blueprinted: Precision-machined to exact tolerances, fully documented, inspected, and serialized for quality assurance.
  • Pre-Lubed & Ready to Install: Saves installation time and helps provide proper startup protection.
  • Hardcoat Anodized Finish: Durable red hardcoat anodized finish with laser-etched Katech Performance logo.
  • Made in the USA: Proudly engineered, machined, and hand-assembled at Katech Engineering in Clinton Township, Michigan.

Performance Comparison

Performance MetricComparisonImprovement
Scavenge Capacity Compared to discontinued OEM LS9 oil pump (GM #12578147) +62%
Scavenge Capacity Compared to Katech Ported OEM LS9 Oil Pump Upgrade +44%
Peak Oil Pressure Compared to Katech Billet LS7 Oil Pump (KAT-A7936) +8%

Specifications

Material Billet Aluminum
Finish Red Hardcoat Anodized
Pressure Standard
Weight 4.4 lbs
Fitment GM LS9 dry sump engines and LS9 dry sump oiling systems

Vehicle & Engine Fitment

  • 6.2 Supercharged LS9 Dry Sump V8 Engines
  • 2009–2013 Chevrolet Corvette ZR1
  • Custom Applications Utilizing an LS9 Dry Sump Oiling System

Fitment Note: Designed as a direct replacement for the discontinued GM LS9 Dry Sump Oil Pump (GM #12578147). Fitment should always be verified for custom engine swaps and non-OEM applications.

What’s Included

  • Katech TrackFlow™ LS9 Billet High-Capacity Scavenge Dry Sump Oil Pump
  • Pre-lubed and ready for installation
  • Serialized quality documentation

Timing Chain Tensioner & Clearance Requirements

The Katech TrackFlow™ LS9 Billet High-Capacity Scavenge Dry Sump Oil Pump features increased scavenge stage capacity and a revised housing profile to support sustained high-load and endurance racing oil control. Due to this design, timing chain damper selection directly affects clearance with the oil pump body.

  • GM LS7 Timing Chain Damper Kit – GM #12581276
  • GM Gen IV LS Timing Chain Tensioner Kit – GM #12626407

The GM Gen IV LS2 Timing Chain Damper Kit (GM #12588670) may be used only if the OE mounting bolts are replaced with shorter fasteners. The factory LS2 damper bolts may extend beyond the damper body and contact the oil pump housing, creating an interference condition.
Katech recommends verifying bolt depth and performing a trial fit during engine mock-up to confirm proper clearance between the tensioner assembly and pump body before final assembly.
