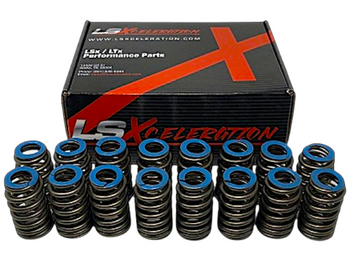

LSXceleration LS6/LS3 Valve Springs 83265-16 - .560 Max Lift
- PART NUMBER:
- 83265-16
- UPC:
- MPN:
- 83265-16
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- Beehive Valve Springs
- Spring Diameter Bottom (in.):
- 1.270
- Spring Diameter Top (in.):
- 1.065
- Spring I.D. Bottom (in.):
- 0.850
- Spring I.D. Top (in.):
- 0.650
- Max Lift (in.):
- 0.560
- Load (lbs) @ Installed Height (in):
- 95 @ 1.800
- Open Load (lbs) @ Open Height (in.):
- 300 @ 1.250
- Coil Bind (in.):
- 1.180
- Rate (lbs/in.sq):
- 375
- Quatity:
- Sold as a set of 16
Description
LSXceleration LS6/LS3 Valve Springs 83265-16 - .560 Max Lift (Like GM 12713265. Replaces GM 1265033 & 12499224)
Beehive Style Valve Springs, 95 lbs. @ 1.8 in., 300 lbs @ 1.250 in., .560 in. Maximum Lift, LS6/LS2/LS3, Set of 16
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!

LS Springs
I have not run these yet. I do have another set that is installed on a set of 243 heads. I went with these as they are rated for 95 lbs vs 90 lbs. Since I am running a cam with .530 lift, I did not want to go to say 110 lbs at Seat.

.560 valve springs
Great price and were shipped out fast definitely will order from you Guys again!!!

Great budget springs
High quality, have yet to have a issue with anything ordered from you guys!

Great product great service great recommendation
Great excellent service excellent recommendation

Pleasant
Excellent pleasant
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!

LS Springs
I have not run these yet. I do have another set that is installed on a set of 243 heads. I went with these as they are rated for 95 lbs vs 90 lbs. Since I am running a cam with .530 lift, I did not want to go to say 110 lbs at Seat.

.560 valve springs
Great price and were shipped out fast definitely will order from you Guys again!!!

Great budget springs
High quality, have yet to have a issue with anything ordered from you guys!

Great product great service great recommendation
Great excellent service excellent recommendation

Pleasant
Excellent pleasant
Related Products
Related Products

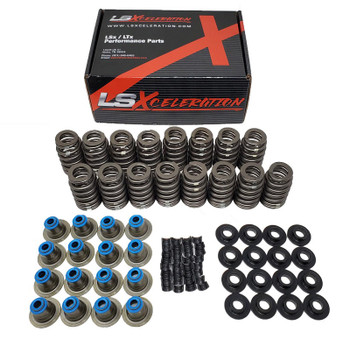

LSXceleration LS6/LS3 Valve Spring Kit 83265K1 - .560 Max Lift
LSXCELERATION

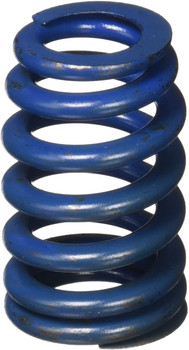

LSXceleration LS6/LS3 Valve Spring 85033-1 - .550 Max Lift
LSXCELERATION

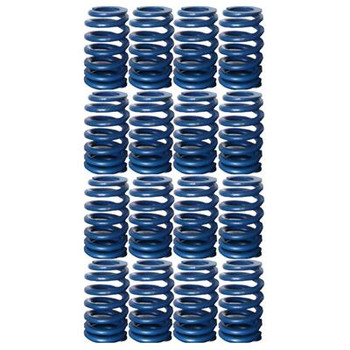

Chevrolet Performance LS6/LS3 Valve Springs 12499224 - .550 Max Lift
CHEVROLET PERFORMANCE

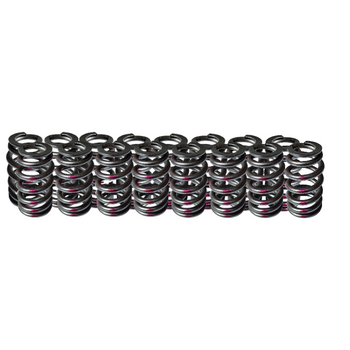

LSXceleration Beehive Valve Springs LSX1219-16 - 0.625 Max Lift
LSXCELERATION

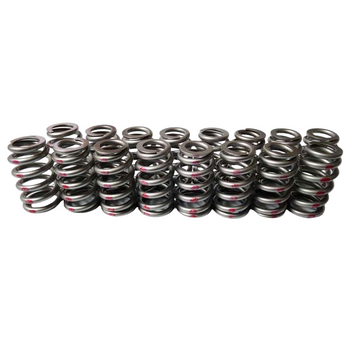

LSXceleration Beehive Valve Springs LSX1218-16 - 0.600 Max Lift
LSXCELERATION

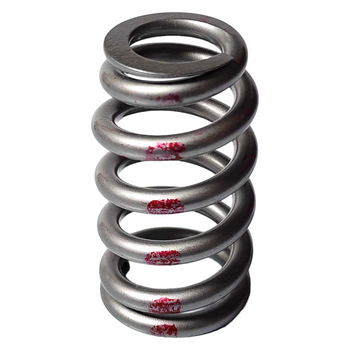

LSXceleration Beehive Valve Spring LSX1218-1 - 0.600 Max Lift
