MANLEY

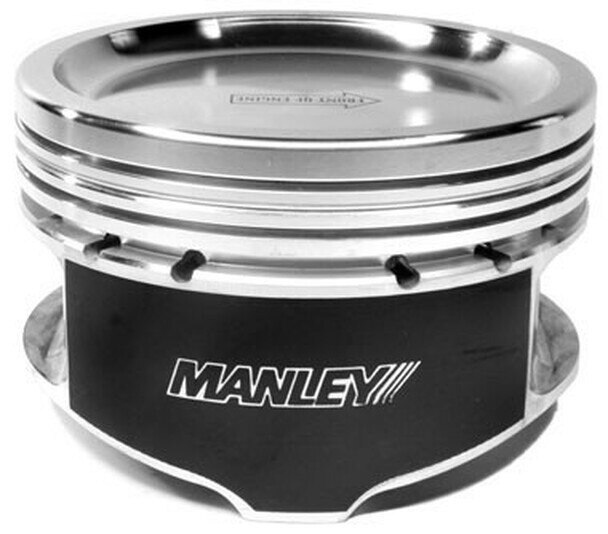

Manley Platinum Series LS 4.130 Bore 4.000 Stroke -18cc Dish Piston Kit 596305C-8
- PART NUMBER:
- 596305C-8
- UPC:
- 807298073071
- MPN:
- 596305C-8
- Availability:
- Ships from Manufacturer
- Shipping:
- Free over $98 in U.S. 48
- Type:
- Dish Pistons
- Bore (in.):
- 4.130
- Stroke (in.):
- 4.000
- Rod Length (in.):
- 6.125
- Compression Height (in.):
- 1.115
- Pin Diameter (in.):
- 0.927
- Crown Volume (cc):
- -18
- Weight (g):
- 439
- Compression Ratio w/64cc:
- 10.6:1
- Alloy:
- 2618
- Ring Included:
- No
- Ring Sizes:
- 1.5mm, 1.5mm, 3.0mm
- Recommended Ring Set:
- 46361-8, 46361ST-8, 46361GT-8
- Quantity:
- Sold as set of 8
- Notes:
- Rings not Included
Description
Manley Platinum Series LS 4.130 Bore 4.000 Stroke -18cc Dish Piston Kit 596305C-8
Features:
- 2618 high strength material lightweight design
- Offset wrist pin design
- Machined for reluctor wheel clearance
- Round wire locks
- 1.5, 1.5, 3mm ring package
- Forced pin oiling, pressure balance groove and precision pin fitting
- Standard Series: Premium Chrome Moly P/N 42428 (2.500” x .150” wall, .927” dia., 118 grams)
- Extreme Duty Series: 9310 Alloy P/N 42528 (2.500” x .210” wall, .927” dia., 149 grams)
