Molnar Technologies

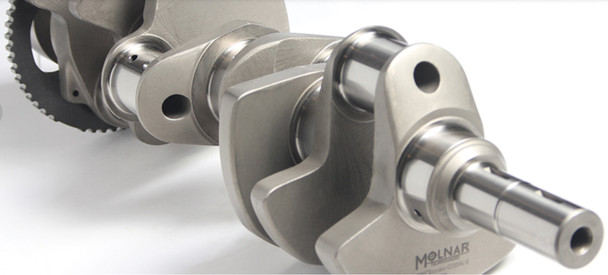

Molnar Technologies GM LS7 4.100 Stroke Crankshaft w/Dry Sump Snout 346-4100LB6F-LS7
- PART NUMBER:
- 346-4100LB6F-LS7
- MPN:
- 346-4100LB6F-LS7
- Availability:
- Ships from Manufacturer
- Shipping:
- FREE OVER $98 IN US 48
- Type:
- 4.100 Stroke Cranks
- Part #:
- 346-4100LB6F-LS7
- Crankshaft Material:
- 4340 Forged
- Crank Snout Type:
- Long (Dry Sump)
- Crank Reluctor Wheel:
- See Option
- Stroke:
- 4.100"
- Main Journal Diameter:
- 2.559"
- Rod Journal Diameter:
- 2.100"
- Minimum Rod Length:
- 6.125
- Bolt Pattern:
- 6-Bolt
Description
Molnar Technologies GM LS7 4.100 Stroke Crankshaft w/Dry Sump Snout 346-4100LB6F-LS7
- Stroke - 4.100
- Rod Pin Diameter - 2.100
- Minimum Rod Length - 6.125
- Bod Weight - 1800
Molnar 4340 forged crankshafts are heat treated to increase tensile strength, shot peened to increase fatigue life, nitrided for wear resistance and 100% mag particle inspected to ensure against cracks.
Sizes are held to the tightest tolerances you’ll find in the racing industry
