PROCHARGER

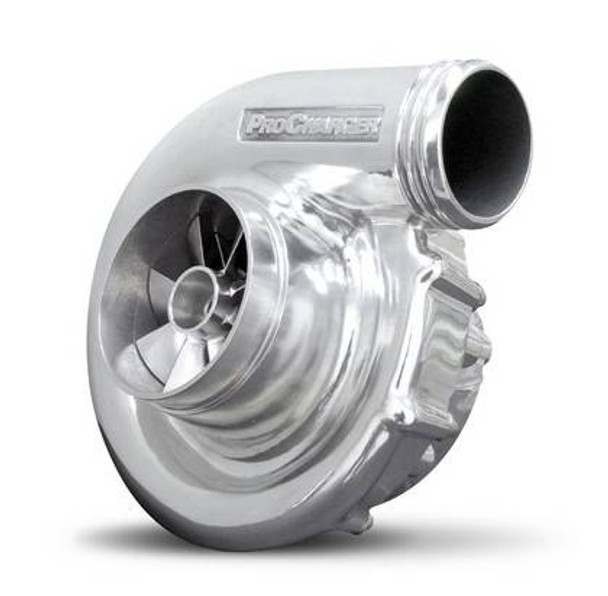

Procharger F-1C Supercharger Head Unit 1100 Hp PC327A-001
- PART NUMBER:
- PC327A-001
- MPN:
- PC327A-001
- Availability:
- Ships from Manufacturer
- Shipping:
- Free over $98 in U.S. 48
- Type:
- Centrifugal Superchargers
- Color:
- Satin
- Volute Diameter (in.):
- 9.75
- Max Supercharged HP:
- 1100
- Base HP Range:
- 300-550
- Max Flow (CFM):
- 1625
- Max Boost (PSI):
- 38
- Inlet Diameter (in.):
- 4.0
- Outlet Diameter (in.):
- 3.0
- Inducer Diameter (in.):
- 3.70
- Exducer Diameter (in.):
- 5.56
- Outlet I.D. (in.):
- 2.62
- Max Impeller RPM:
- 74,000
- Internal Step-Up:
- 5.40:1
- Reverse Rotation Option:
- Yes
- Self Contained:
- Yes
- Oil Capacity:
- 4 oz.
- Notes:
- Head Unit Only
Description
Procharger F-1C Supercharger Head Unit 1100 Hp PC327A-001
ATI’s self-contained (SC) ProCharger models are the first and only gear-driven centrifugal superchargers to feature self-lubrication, and contain the industry’s most advanced technology. In addition to the patented oiling design, SC ProChargers also feature the highest step-up ratio, exclusive billet impellers, and the industry's only billet gearcases for superior rigidity, sealing and appearance. These proven self-contained ProChargers were designed specifically for internal lubrication and have become the industry standard. For over 25 years, ProCharger has delivered the most powerful, reliable, and advanced supercharger systems and kits on the market. Invented, engineered, and made in the USA, ProCharger provides the most power per pound of boost for automotive, truck, SUV, off-road, sport compact, motorcycle, UTV, and marine applications. Procharger takes great pride in being the first to develop intercooled supercharger kits and systems for most vehicle platforms, with the maximum reliable power gains and the ultimate upgrade path to turn up the power further.
Legendary ProCharger F-Series Superchargers
ProCharger F-Series superchargers were designed with one simple goal: blow the competition away. Since their introduction in 2000, ProCharger's ever-expanding lineup of F-Series superchargers have continued to be the standard by which others hope to be measured, both on the track and on the street. From the custom designed 7075 billet aluminum impeller to the CNC machined transmission case to the industry-exclusive, patented compound bearing design, each self-contained ProCharger F-Series supercharger has been designed to deliver maximum performance, pass after pass, year after year, championship after championship.
On the Street or Strip:
The highly versatile ProCharger F-1 supercharger lineup is compact enough for many of today's high-horsepower modified street engine applications, yet powerful enough for ultra-high street horsepower and hard-core racing applications.
ProCharger F-1C Specs:
Base HP Range of NA Engine: 300-550 HP
Maximum Supercharged HP Rating: 1,100 HP
Maximum Airflow: 1,625 cfm
Maximum Boost: 38 psi
Inlet Diameter: 4 inches
Outlet Diameter: 3 inches
Maximum Impeller RPM: 74,000
Internal Step-up Ratio: 5.40:1
Self-Contained Oiling: Yes
Reverse Rotation Available: Yes
