Classic Instruments

Classic Instruments All American 2 1/8" Cylinder Head Temp. Gauge AW197SRC

Part Number:
AW197SRC
MPN:
AW197SRC
Availability:
Ships from Manufacturer
Shipping:
Free over $98 in U.S. 48
Type:
Cylinder Head Temp. Gauges
Gauge Style:
Analog
Gauge Range:
100-600°F
  • Classic Instruments All American 2 1/8" Cylinder Head Temp. Gauge AW197SRC (AW197SRC)
  • Classic Instruments All American 2 1/8" Cylinder Head Temp. Gauge AW197SRC (AW197SRC)
  • Classic Instruments All American 2 1/8" Cylinder Head Temp. Gauge AW197SRC (AW197SRC)
$316.95

Description

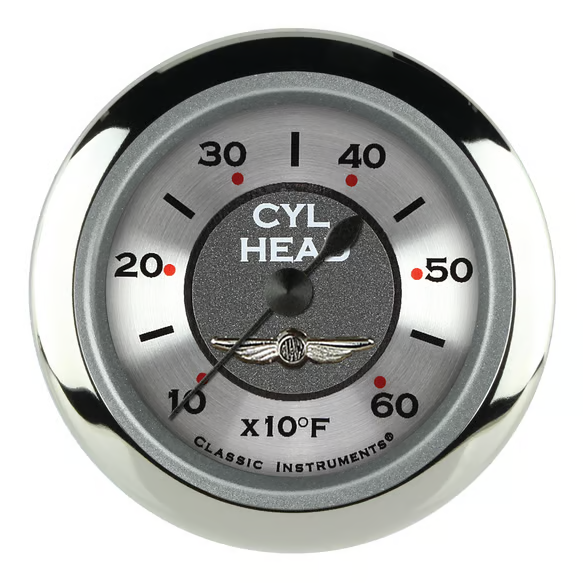

Classic Instruments All American 2 1/8" Cylinder Head Temp. Gauge AW197SRC

All American 2 1/8" Full sweep Cylinder Head Temp. gauge with standard stainless radial bezel and curved glass lens.

Quality, Service and Value are not new. These have been primary objectives for over 45 years. Even with most design work now being done with computers, all the time, effort, and care essential to designing a long-lasting, high-quality product are still applied. Products are built better, or not built at all.
Each gauge is designed, assembled, and calibrated with pride and quality in Boyne City, Michigan. Proudly "Made in the USA" products are designed and built for street rods by street rodders.
Innovation defines the approach. This is the first and only manufacturer to combine all-electrical instrumentation and micro-chip technology with the finest quality, accuracy, and vintage styling available at any price. Unique concepts and trend-setting designs have remained ahead of the industry for over 37 years.
Design sensitivity remains a priority. New and original designs meet the unique needs of automotive enthusiasts, while continuing research and development ensures access to the finest in design, quality, technology, and visual appeal for hot rod applications.
Quality orientation is central. Each part is designed and assembled to exacting, top-of-the-line specifications and tolerances. Component testing at each stage of the assembly process ensures accuracy and reliability. If a product cannot be built better than any alternative, it is not built.
Customer responsiveness is a key focus. Product purchase includes access to top-tier customer service. Complete step-by-step, easy-to-follow instructions, along with helpful technical assistance, are available by phone or computer directly from the shop.

Features:

  • Thermocouple amplifier included
  • A single connection wire harness
  • Type K thermocouple, with 14mm copper lug and 10ft. stainless steel braided wire, included
  • Completely electric
  • .5 - 4.5VDC analog datalogging output
  • Push button calibration
  • Warning light output for additional warning indicator lights
  • Microprocessor technology for precision
  • Rugged air core movement for durability
  • Configurable LED lighting, with choice of Warm White or Cool White lights
  • Integrated red warning light, illuminates entire gauge red when activated
  • Full sweep provides increased accuracy
  • Small 2 1/8" hole size

Brand Classic Instruments
Category Body
Emission Code 6
Gauge Diameter 2 1/8"
Grade Type Performance
Illuminated Yes
Mounting Hardware Included Yes
Part Type Engine Cylinder Head Temperature Gauge
Product Type individual gauge
Sub Category Instrument Panel
Sweep Full Sweep
Temperature Range 100-600°F
Universal Or Specific Fit Universal
Warranty Manufacturer's 7 Year Warranty
Weight 2
UPC 090127630648
Part Number AW197SRC
